Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6A-UTP-IN
Minimum Order Quantity 100rolls
Packaging Details 305m/ Wood Roll,Roll size:38*38*26cm,Roll weight:14KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000Rolls/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CAT6a UTP Lan Cable Indoor Conductor Material 100% Solid Bare Copper
Insulation Materials Color-coded PE Outer Sheath PVC
Reference Bandwidth 750MHz Cable Outer Diameter (mm) 6.5±0.2mm
Color Blue/Grey In Stock,Customized Sample Status In Stock
High Light

Utp Unshield CAT6A CAT7 CAT8 Cable

,

500MHZ CAT6A CAT7 CAT8 Cable

,

500MHZ Ethernet Copper Cable

Product Description
Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs 0
                                                             Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs 1

Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs



Cat6a Cat7 Cat8 Utp Unshield 500MHZ Ethernet Copper Cable Price Per Meter 4 Pairs 305m Cable



Aixton Cat6a was developed to achieve maximum distance of 100 meters for full 10 Gigabit network speeds.

This robust spec will afford you the extra headroom across your network that Cat6 can not. The 750MHz

performance is double that of Category 6 and five times the bandwidth capacity of Category 5e. Our Cat6a

bulk cable tested for compliance with all ANSI/TIA-568.2-D Cat 6 specifications.



Features

 Generic cabling systems.

 Standards - ISO 11801 Edition 2.0 & UL verified to ANSI/TIA – 568 - C.2

 Including 10Base -T, 100Base -T 1000Base -T, ATM 10G & Token Ring

 IEEE 802.3 af (PoE), IEEE 802.3 at (PoE+)



Packaging & Delivery
1. Selling Units: Single item
2. Single catrton size: 50X40X40 cm
3. Single gross weight: 29.700 kg
4. Package Type: 305m per easy pull box, two boxes per outer carton box

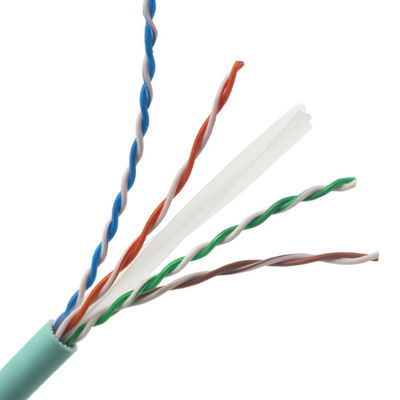

Product Name UNSHIELDED TWISTED PAIR MULTI CORE CAT6a UTP CABLE INDOOR
Inner Conductor Material 100% Pure Copper
Diameter 0.57mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Outer Jacket Material New PVC (Rip code, Optional)
  Thickness ≥ 0.65mm
  Nominal O.D 6.50mm ± 0.10mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal
Features








FAQ
Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs 7

Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
