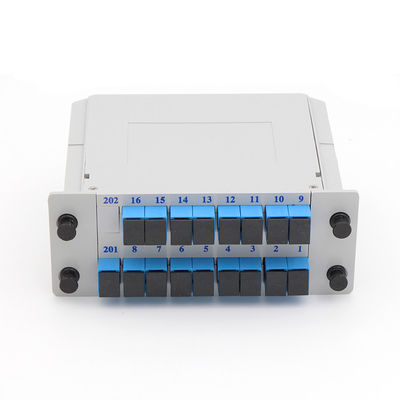

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-CTPLC-16
Minimum Order Quantity 10PCS
Packaging Details 1PCS/Plate,100PCS/Carton
Delivery Time 10-15days
Payment Terms T/T, L/C, Western Union
Supply Ability 50000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Cassette Splitter SC/APC-UPC Fiber Type G.657A1
Configuration Type 1x16 Input/Output Fiber Diameter 900μm
Insertion Loss ≤7.3dB Polarization Dependent Loss ≤0.2dB
Return Loss ≥55dB Operating Bandwidth 1260~1650nm
High Light

1x16 Planar Lightwave Circuit Splitter

,

Card Inserting PLC Splitter

,

Planar Lightwave Circuit Splitter

Product Description

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports 0

                                                               1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports 1

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports



1x16 LGX Box Cassette Card Inserting PLC Splitter Module 16 Ports Fiber Optical PLC Splitter



Overview

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device

that is fabricated using silica optical waveguide technology to distribute optical signals

from Central Office (CO) to multiple premise locations.



Optical PLC Splitter Key Features

1.  Good Uniformity
2.  Not Sensitive to wavelength
3.  Low Polarization loss
4.  Reliable Performance
5.  Small size
6.  Quality guaranteen
7.  Competitive price



Specifications for FTTH 1x16 Fiber Optical PLC Splitter
Working Wave
1260-1650nm
Channel Uniformity
0.8dB
Insertion loss
10.5dB
Directivity
55dB
Reflection Loss
55dB
Polarization Dependent Loss
0.3dB
Wave Correlation Loss
0.5dB
Degree Related Loss
0.5dB
Operating Temperature
-40~+85℃
Connector type
SC / UPC

Characteristics

Unit

Value/Performance

Operating Wavelength

nm

1260 - 1650, others on request

Port Configuration

-

1x2

1x4

1x8

2x4

2x8

1x16

2x16

1x32

2x32

1x64

2x64

Insertion Loss

dB

<4.0

<7.3

<10.5

<7.6

<11.0

<13.7

<14.4

<16.9

<17.5

<21.0

<21.0

Uniformity

dB

<0.4

<0.6

<0.8

<1.0

<1.2

<1.2

<1.5

<1.5

<1.8

<2.0

<2.2

PDL

dB

<0.2

<0.2

<0.2

<0.2

<0.3

<0.25

<0.3

<0.3

<0.4

<0.35

<0.4

Directivity

dB

>55

Operating Temperature

°C

-20 ~ +70

Storage Temperature

°C

-40 ~ +85

Max. Power

mW

300

Lead Length

m

1, others on request

Package Type

-

Box, square tube with bare ribbon, flat tube with 900um fibers



Dimension

Cassette

mm

100x80x10

120x80x18

140x115x18

Sq. Tube

mm

40x4x4

50x4x4

50x7x4

60x7x4

60x12x4

N.A.

Flat Tube

mm

50x7x4

60x7x4

60x12x4

80x20x6

N.A.

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports 2

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports 3

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports 4

1x16 Planar Lightwave Circuit Splitter Card Inserting PLC Splitter Module 16 Ports 5
