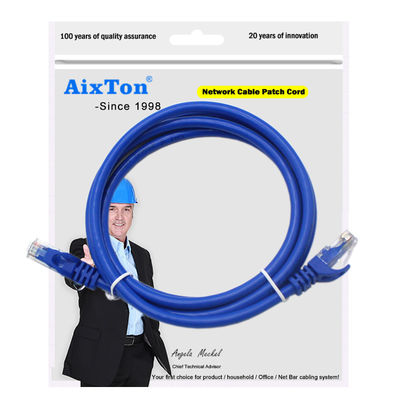

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6-PC-UTP
Minimum Order Quantity 10000meters
Packaging Details 5M/Bag , 75Bags/Carton, Carton size:47*33*29,Carton Weight:12.5KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 50000M/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CAT6 Unshielded Patch Cord Conductor Material 100% Pure Copper
Number Of Conductors 8 Gauge (AWG) 24 (7/0.20mm)
Insulation Materials HDPE Outer Sheath PVC
Color Blue Package 5M/Bag(Different Length Is Available)
High Light

5m HDPE Network Patch Cord

,

5m Cat6 Network Patch Cord

,

patchsee cat6 rj45 ethernet cable

Product Description

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable 0

                                                      1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable 1

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable



Ethernet Cables 1m 2m 3m 5m Cat6 Patch Cable Utp Patch Cord Rj45 Cable





Cat6 UTP patch cable features 23AWG unshielded twisted pair stranded copper cable with

a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45

connectors from being damaged or snapped off during installation.
It exceeds the performance of the Cat6 Ethernet network cable standard and offers the cost-effective

solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 250MHz

within 100 meters of cable.



High Transmission Performance

Universal connectivity for LAN network components such as PCs, servers, printers, routers, switches, media players, NAS, VoIP phones, PoE devices, etc.

Backwards compatible with any existing Cat 5e or Cat5 cable network

Compliance with the TIA/EIA 568-C.2 standard

Suitable for wired home and office networks



Features:

Ideal for RJ45 ports of switch, server, firewalls and other equipment.

Matched with 10/100/1000Base-T transceiver modules.

Supports power and data transmission between PSEs and PDs.



Application:

● 100 Base T (IEEE 802.3)

● Fast Ethernet (IEEE 802.3u)

● 100vg-AnyLAN (IEEE 802.12)

● Token Ring (IEEE 802.5)

● TP-PMD (ANSI X3T9.5)

● 100 Mbps CDDI

● ATM 155 Mbps



Cable Construction

Item

CAT6 UTP Patch Cord

Inner conductor

Material

Bare Copper Pass Fluke Test

Diameter

7×0.2MM (24AWG stranded)

Insulation(Dielectric)

Material

Color-coded PE(Polyethylene)

Thickness

0.21mm

Diameter

1.05 ± 0.01mm

Cross Separator

Material

Plastic

Outer Jacket

Material

PVC

Thickness

0.65mm

Nominal O.D

6.10mm ± 0.10mm

Color

Any

Twisted pair

N/A

Pair 1 : Blue,White / Blue

Pair 2 : Orange,White / Orange

Pair 3 : Green,White / Green

Pair 4 : Brown,White / Brown

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable 2

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable 3

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable 4

1m 2m 3m 5m Network Patch Cord Patchsee Cat6 Rj45 Ethernet Cable 5
