Customized 8-144 Fibers MTP MPO OM3 Multimode Elite Breakout Cable Aqua
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | OM3 Multimode Trunk Cable（MTP） | Fiber Mode | OM3 50/125μm |
|---|---|---|---|
| 10G Ethernet Distance | 300m At 850nm | Trunk Diameter | 3.0mm-17.3mm |
| Connector B | LC/SC/FC/ST | Breakout Leg | 2.0mm (Duplex), 2.0/0.9mm (Simplex) |
Product Description

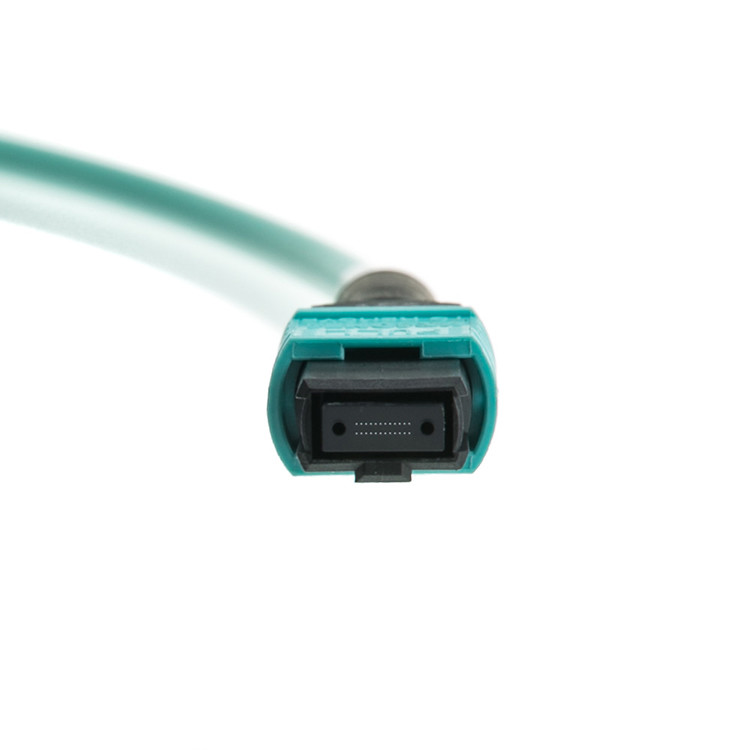

Customized 8-144 Fibers MTP MPO OM3 Multimode Elite Breakout Cable Aqua
MTP/MPO Trunk Cables
MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.
Standards Compliance
1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;
2; Different size & color boot option;
3; Low insertion loss; High return loss;
4; 100% interferometer measurement available;
Features
US Conec MTP® connector, Senko MPO Plus® premium connector
SMF-28® Ultra optical fiber, Corning Clearcurve® OM3/OM4 fiber, YOFC Maxband® OM5 fiber
OS2, OM3, OM4, OM5 available
0.35dB elite low loss connector
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect the fiber ends during installation
| Model | SM | MM | |
| Connector A:MPO/MTP | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | PC,APC | PC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Connector B:LC,LC Uniboot,SC,FC,ST | |||
| Polish | PC,APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
| Durability(500 Matings) | ≤0.2dB | ||
Product Details
FAQ
Q1:What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of
products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than
that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,
Enough Meters, High Quality, High Performance". Providing our customers with higher quality
products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the
logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support
long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
