OEM Pure Copper RG59 RG6 Coaxial Cable 16awg 18awg 20awg 22awg

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number SPEAKER CABLE
Minimum Order Quantity 5000M
Packaging Details 100M/ Roll
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 200000M/month
Product Details
Product Name SPEAKER CABLE Conductor Material 100% Pure Copper+Tinned Copper
Number Of Conductors 105 Conductor Diameter 16AWG(105*0.127mm)
Outer Sheath PVC Color Transparent
Package 100M/Roll Outer Diameter 6.25*2.9mm
High Light

Pure Copper RG59 RG6 Coaxial Cable

,

OEM RG59 RG6 Coaxial Cable

,

OEM rg 6 coaxial cable

Product Description

OEM Pure Copper RG59 RG6 Coaxial Cable 16awg 18awg 20awg 22awg

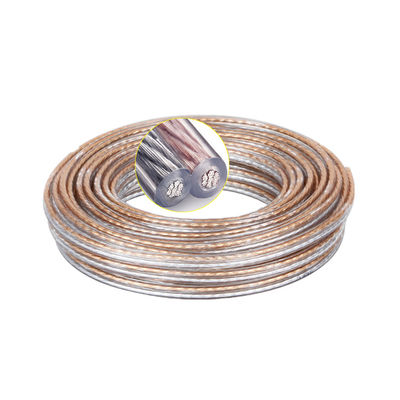

Pure Copper Conductor Speaker Cable 16awg 18awg 20awg 22awg Audio Speaker Cables Wire

Aixton twin parallel type Speaker cables are manufactured with multi wire, bright annealed flexible bare

electrolytic grade conductor, insulated with specially formulated transparent grade PVC compound.

These speaker cables offer extra flexibility and hence find very easy to pull through the conduit without

damage. The distance between the two conductors is maintained consistently for uniform capacitance

throughout the length. These cables being transparent offer good aesthetic value. These are mainly used

in Connecting speakers,  for clear and distortion free voice with very low db loss. These are available in

20, 19, 18, 16 and 14 AWG conductor sizes with 100 mtrs coil packing.



Application:

  • used in connecting for audio appliances, home appliances, small electric tolls and instruments.
  • Construction:Stranded copper conductor or Tinned Copper, PVC insulated, twin parallel or twisted.
  • Rated Voltage:300/300V
  • Standard: IEC227
  • CE, RoHS, CCC, ISO certificated
  • Package:coils with plastic film and wooden pallet.or plastic/wooden reel
  • Quick Delivery,OEM available

TECHNICAL DETAILS

Conductor

Approximate Overall Dimensions (mm)

Size AWG

Equivalent Metric Size mm2

Max. Cond. Resistance ohms/km 200C



Width



Height



Thickness

Web Dims. W x H

20

0.50

39.00

4.45

2.00

0.6

0.5 x 0.4

19

0.75

26.00

5.45

2.50

0.6

0.5 x 0.4

18

1.0

21.4

6.05

2.80

0.7

0.5 x 0.4

16

1.5

13.5

6.25

2.90

0.7

0.5 x 0.4

14

2.0

9.00

7.00

3.30

0.75

0.5 x 0.4

13

2.5

7.98

7.4

3.44

0.75

0.5 x 0.4




OEM Pure Copper RG59 RG6 Coaxial Cable 16awg 18awg 20awg 22awg 1





FAQ

OEM Pure Copper RG59 RG6 Coaxial Cable 16awg 18awg 20awg 22awg 4

Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
