Double Sheath Solid Copper CAT6 Ethernet Cable SFTP 0.56mm 0.57mm 305m
Place of Origin | CHINA |
---|---|
Brand Name | AIXTON |
Certification | ISO9001,CE,FCC,ROHS,UL |
Model Number | AXT6-SFTP-IN |
Minimum Order Quantity | 100rolls |
Packaging Details | 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:18KG |
Delivery Time | 15-20days |
Payment Terms | T/T, L/C, Western Union |
Supply Ability | 20000boxes/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | CAT6 SFTP Lan Cable Indoor | Conductor Diameter | 23AWG(0.57±0.01mm) |
---|---|---|---|
Insulation Materials | Color-coded PE | Screen Braid | Copper Clad Aluminum |
Data Rate Support | 10/100/1000Base-T | Bend Radius (mm) | 32.8 |
Package | 305m/1000ft/box | Standard | ISO/IEC 11801, ANSI/TIA-568-C.2 |
High Light | Solid Copper CAT6 Ethernet Cable,Double Sheath CAT6 Ethernet Cable,305m cat6 sftp Cable |

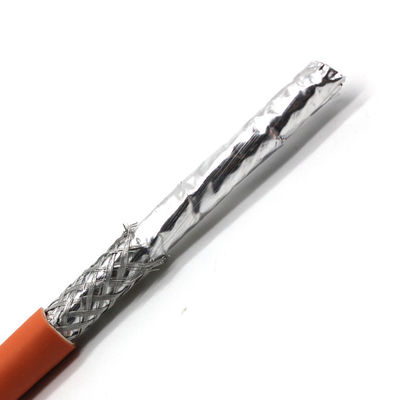

Double Sheath Solid Copper CAT6 Ethernet Cable SFTP 0.56mm 0.57mm 305m
Indoor 4Pair Double Sheath Solid Copper Network Cable Cat6 SFTP 0.56mm 0.57mm 305m
Cat 6 4 Pair S/FTP Cable has been designed for Horizontal Cabling Networks for Transmission of High Speed Data, Digital and Analog, Voice and Video Signals on LANs. Tinned Copper Screening Gives Protection Against EMI, Avoid Signal Loss and BetterMechanical Properties of Cable. Individual Pair Shielding Provides Higher Protection Against Crosstalk. Supports Gigabit Ethernet(1000 Base-T) Standard Suitable for Noisy Environments, High EMI Inteference Surroundings and Complies to the Requirement of ANSI/TIA-568-C.2 and ISO/IEC 11801 ED. 2.0. Performance Verified Upto 250mhz. UL Listed and ETL Verified.
Features
1. Cat6 SFTP Shielded Twisted Pair Cable
2. Doube Shields With Al-Foil and Tinned Copper Braiding
3. Pass FLUKE Test High Performance Computer Networking Cable
4. Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
5. Digital Communication Applications of up to 550MHz Bandwidth
6. Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
7. CMX / CM / CMG / CMR rated PVC Jacket
Enjoy maximum flexibility to meet unique system requirements. Ideal for multiple network application.
Parameter
Product Name | DOUBLE SHIELDED TWISTED PAIR 8 CORE CAT6 SFTP CABLE INDOOR | |
Inner Conductor | Material | 100% Pure Copper |
Diameter | 0.57mm ± 0.01mm ( 23AWG ) | |
Insulation ( Dielectric ) | MaterialThicknessDiameter | Color-coded PE (Polyethylene) |
≥ 0.21mm | ||
1.03mm ± 0.01mm | ||
Cross Separator | Material | Plastic |
Shielded Layer | Material | Aluminum Foil |
Braided | MaterialTypeDiameter | CCA, Aluminum, Copper, TC and so on |
32, 48, 64, 80, 96, 112, 128, 144 | ||
0.08mm, 0.10mm, 0.12mm | ||
Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
Pair 2: Orange, White/ Orange | ||
Pair 3: Green, White/ Green | ||
Pair 4: Brown, White/ Brown | ||
Outer Jacket | Material | New PVC (Rip code, Optional) |
Thickness | ≥ 0.65mm | |
Nominal O.D | 6.80mm ± 0.10mm | |
Reference Standard | Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard | |
Rated Temperature | -20℃ to +70℃ | |
Supports Transmission | Digital and analogue voice, data and video signal |
FAQ
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
discounted prices.
