18 Gauge Rg58 Rg59 RG6 CATV Cable 75ohm Data Communication Cable

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-RG6
Minimum Order Quantity 30000meters
Packaging Details Wooden Drum
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 500km every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name RG6 Coaxial Cable Conductor Solid Bare Copper
Conductor Diameter 1.02mm Insulation Foam PE
Number Of Conductors 1 Braiding Coverage 40%-95% Al Braid Coverage
Jacket Material PVC Sample Status In Stock
High Light

Rg58 Rg59 RG6 CATV Cable

,

18 Gauge Rg59 RG6 CATV Cable

,

75ohm data communication cable

Product Description

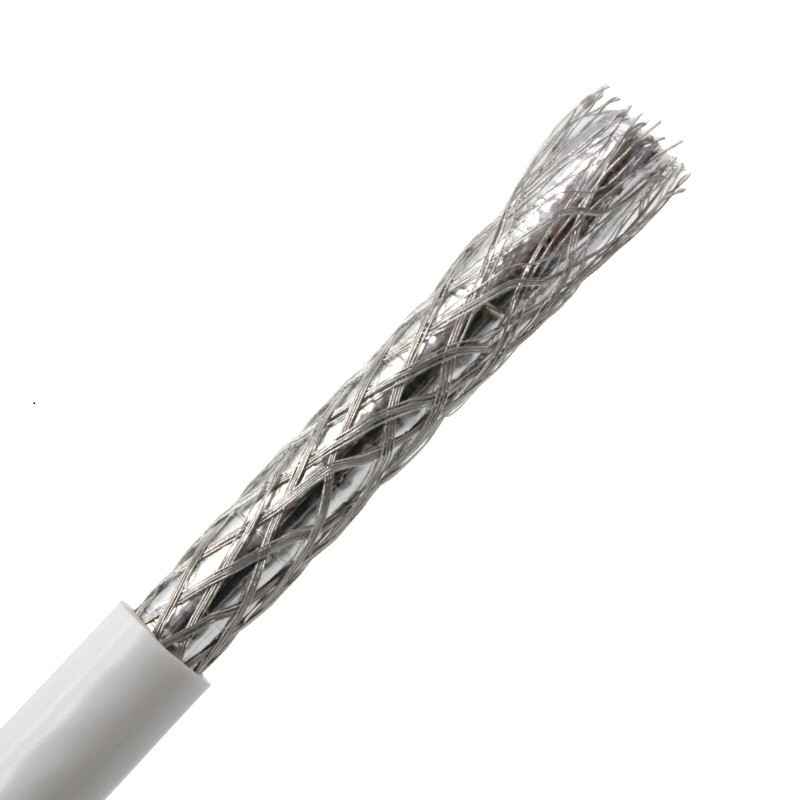

18 Gauge Rg58 Rg59 RG6 CATV Cable 75ohm Data Communication Cable 0

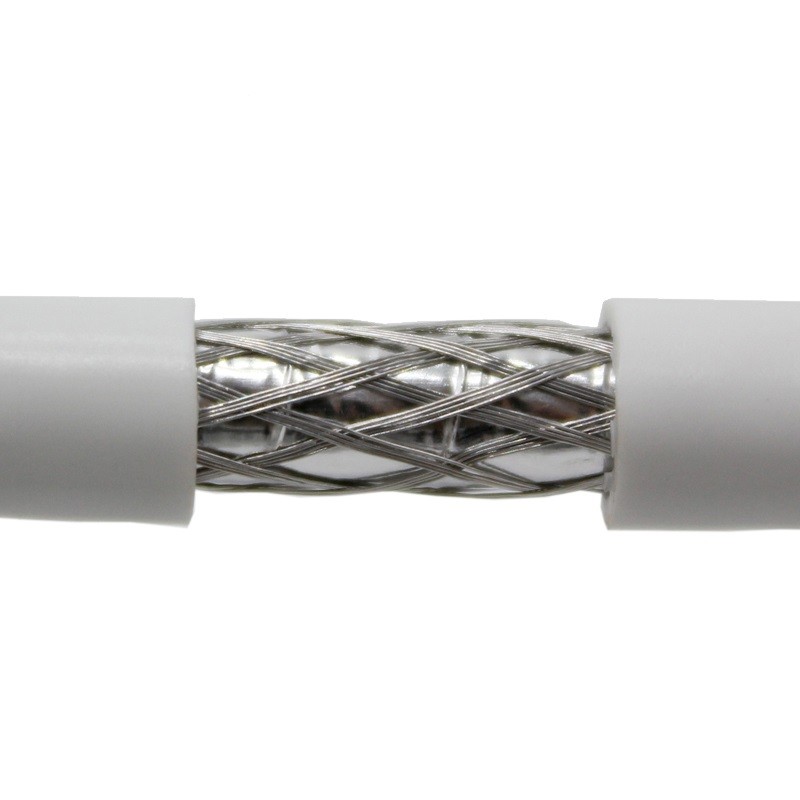

                                                             18 Gauge Rg58 Rg59 RG6 CATV Cable 75ohm Data Communication Cable 1

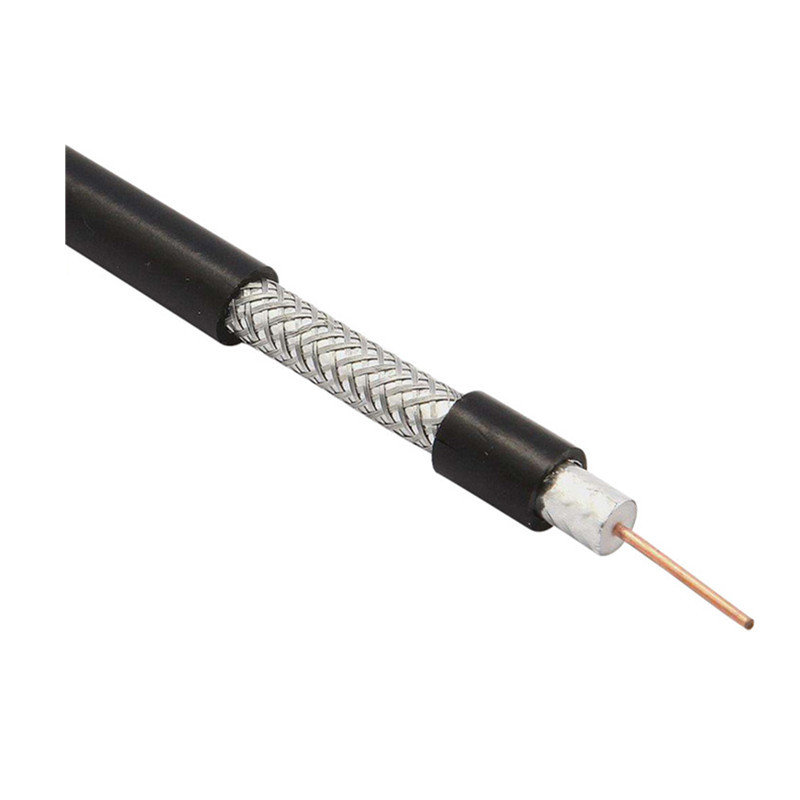

18 Gauge Rg58 Rg59 RG6 CATV Cable 75ohm Data Communication Cable



Coaxial Cable CCTV Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV Cable

18 gauge (1.02mm) copper clas steel center conductor; gas expanded polythene dielectric; inner shield aluminum foil overlap bonded to dielectric; outer shield of bare aluminum braid wire; jacket of PVC



Physical Dimensions
1. Center Conductor: 1.02 ± 0.01mm Copper Clad Steel
2. Dielectric: 4.57 ± 0.05mm Foam PE​Shield: Bonded AL Foil 100%
3. Braid Coverage: 60% x 16 x 0.16 ± 0.005mm AL Wire
4. Jacket 6.91 ± 0.05 mm PVC

Mechanical Characteristics
1. Operating Temperature Range: 20C to + 75C
2. Max. Recommended Pull Tension: 20.412 kg
3. Min. Bend Radius (Install): 0.7620 mm

Electrical Characteristics
1. Sparker Test: 4000VAC​Impedance: 75±3Ω
2. Capacitance: 54±3pF/m
3. Velocity of Propagation: 85%
4. SRL: 20dB (5-2300MHz)
Product name
RG6 Coaxial Cable
Center Conductor Material
BC or CCS
Conductor Diameter
1.02mm
Insulation
Foam PE
Insulation Diameter
4.7mm
First Shield
AL Foil
Second Shield
AL Braid
Braiding Coverage
40%-95% Al Braid Coverage
Jacket Material
PVC,PE,LSZH
Application
TV or Satellite Antenna
Sparker Test
4000VAC
Impedance
75+3 Ohm
Return Loss
20dB min (5-2300MHz)

Product Details


FAQ


Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
