OEM Indoor SFTP Data Cable Cat5e Utp 24awg CE FCC UL ETL Certificate

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT5E-SFTP-IN
Minimum Order Quantity 100rolls
Packaging Details 305m/ 1000ft/ Plywood Reel 2 Reels/ Carton,Plywood Reel Size: 32cm (Diameter) * 26cm (Height) Carton Size: 66*34*28cm G.W.: 30KG/ Carton
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000boxes every month
Product Details
Cable Name Cat5e SFTP Cable Jacket Grey PVC
Application Networking Wire Gauge 0.51mm
Cable Outer Diameter (mm) 6.2 ± 0.4 Sample Status In Stock
Warranty 1 Year Length 1000ft
High Light

SFTP Data Cable

,

Data Cable Cat5e Utp 24awg

,

ETL 24awg cat5e Data Cable

Product Description

OEM Indoor SFTP Data Cable Cat5e Utp 24awg CE FCC UL ETL Certificate



OEM Indoor SFTP Cat5e Bare Copper 24awg Enthernet High Speed Network Cable CE FCC UL ETL Certificate

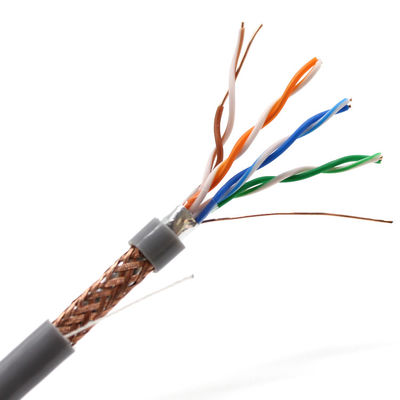

The Cat 5e SF/UTP copper cable is constructed of 24AWG solid copper conductors with a HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.

Structure

1. Bare solid copper conductor
2. Colour-coded PEinsulation
3. Shield:PET/AL
4. Braiding Wire:0.12BC
5. Rip cord ( optional)
6. Lead free PVC or LSOHjacket
7. Flammabilitygrade:CMX,CM,CMG,CMR
8. Rated temperature: 60ºC,75ºC
9. Reference Standard: UL1581, UL444, TIA/EIA568B



Application for SFTP cat5e cca computer cable:

1. Frequency: 100MHz

2. Transmission speed: 150Mbps

3. Application: 10Base T, ATM, ethernet, token ring, TP-PMD audio, telephone and multimedia networks

4. Standard: international ISO/IEC 11801, USA ANSI/TIA/EIA-568B.2

5. Certificate:CE/FCC/Rohs/ISO9001



More cat5e sftp lan cable more details as below:

Product name
Cat5E SFTP lan cable
Shielding Type
SFTP
Cable Jacket
PVC
Cable Length
1000ft (305m)
Standard Bandwidth
100MHz
Data Rate Support
100Base-TX
Wire Gauge
24AWG
Conductor Type
Bare Copper
Conductor Diameter
0.50 ± 0.01
Cable Color
Blue, White,Yellow,Gray
Standard
ISO/IEC 11801, ANSI/TIA-568-C.2
Operating Temperature
0 to 50°C
InstallationTemperatue
-30 to 50°C
Package
Aixton brand or OEM

Related Hot Products





Product Details


FAQ


Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
