OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode

  • OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode
  • OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode
  • OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode
Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GJFJV-6
Minimum Order Quantity 10KM
Packaging Details 1000M/Wood Roll，Size of Wood Roll：55*55*60cm, Weight:42KG
Delivery Time 10-15days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GJFJV-MM-6F Fiber Type OM3
Number Of Fiber 6F Cable Structure Tight-buffered, Loose Tube
Cable Diameter 6.2±0.1MM Bending Radius 10D/20D (mm)
Outer Jacket Materail LSZH Color Light Green
Highlight

OM3 Low Smoke Zero Halogen Cable

,

GJFJV Low Smoke Zero Halogen Cable

,

GJFJV lszh cable
Product Description

OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode 0

                                                             OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode 1

OM3 Low Smoke Zero Halogen Cable 4 Core 6 Core 12 Core GJFJV Multi Mode



Indoor Tight Buffer Fiber Cable 4 Core 6 Core 12 Core GJFJV Optical Fiber Cables Multi Mode

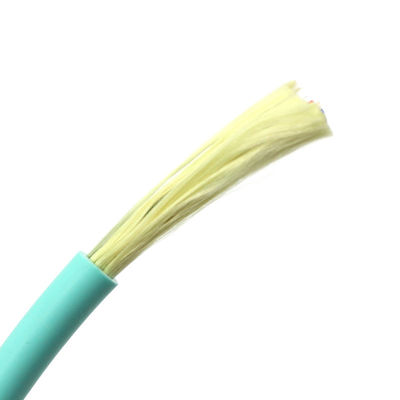

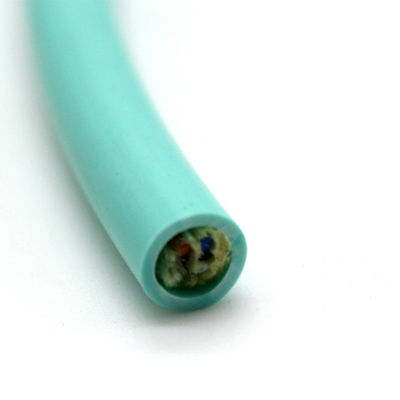

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC (LSZH) jacket. High strength aramid yarn strength member ensures tension-resistance and long term stable transmission for optical fibers.


Characteristics

  • Excellent strippability with tight buffered fibre
  • Excellent flame retardant properties
  • Easy embranchment due to Figure 8 structural sheath
  • Excellent corrosion resistant, waterproof, flame retardant and environmental- friendly properties of the outer sheath



Features and Benefits

•  Light weight and compact

•  900μm tight-buffered fibers can be directly terminated

•  Flexible, flame-retardant & color coded outer jacket

•  FRP central strength member

•  Can be deployed in building backbone and horizontal cabling

•  Suitable for high-rise construction, office buildings​



Fiber Parameters

No.

Items

Unit

Specification

OM3



1

Mode Field Diameter

850nm

um

50±0.5

1300nm

um

50±0.5

2

Cladding Diameter

um

124.8±0.7

3

Cladding Non-Circularity

%

≤0.7

4

Core-Cladding Concentricity Error

um

≤0.5

5

Coating Diameter

um

245±5

6

Coating Non-Circularity

%

≤6.0

7

Cladding-Coating Concentricity Error

um

≤12.0

8

Cable Cutoff Wavelength

nm

λcc≤1260



9

Attenuation(max.)

850nm

dB/km

3.5

1300nm

dB/km

1.5



Cable Parameters

Items

Parameters

Fiber count

6

Tight-buffered Fiber

Diameter

850μm±50μm

Material

LSZH

Color

Blue  Orange  Green  Brown  Gray  White  Red  Black  Yellow  Purple  Pink  Aqua

Strength Member

Kevlar

Jacket

Diameter

6.2mm±0.2mm

Material

LSZH/PVC

Color

Light Green

Fiber colour

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Purple

Pink

Aqua







Mechanical and Environmental Characteristics

Items

Unite

Parameters

Tension(Long Term)

N

200

Tension (Short Term)

N

660

Crush (Long Term)

N/10cm

200

Crush (Short Term)

N/10cm

1000

Min. Bend Radius (Dynamic)

mm

20D

Min. Bend Radius (Static)

mm

10D

Operating Temperature

℃

-20~+60

Storage Temperature

℃

-20~+60
