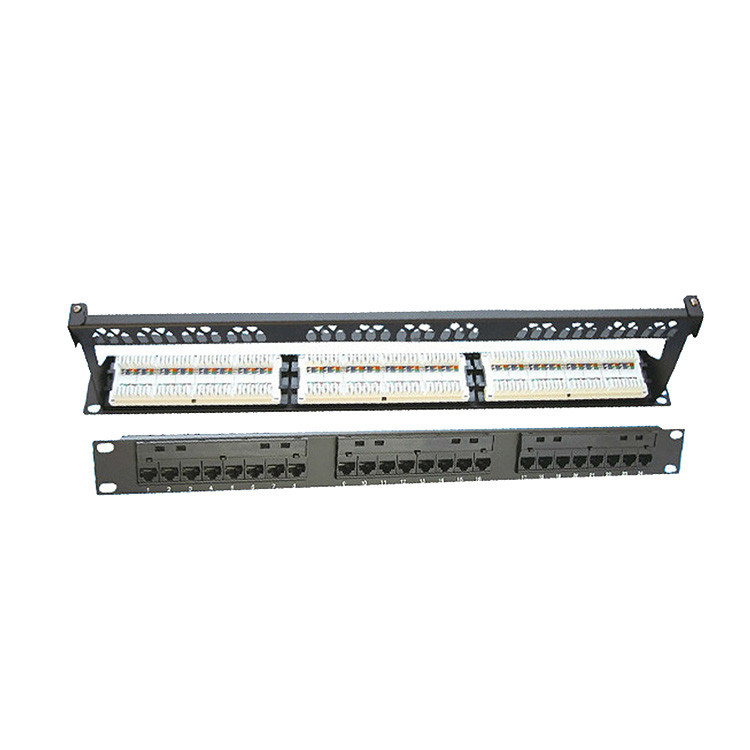

Straight 1U RJ45 Network Patch Panel 24 Port Cat6 Rack Mount

Place of Origin China
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT6-PP-24
Minimum Order Quantity 50PCS
Packaging Details 1PC/Box,50PCS/Carton
Delivery Time 3-4days
Payment Terms L/C, T/T, Western Union
Supply Ability 500000pcs every month
Product Details
Product Name Cat6 Patch Panel Type UTP
Port 24ports Meterial Cold Roll Steel
Model Type Cat6 Wiring Mode T568A/ T568B
Standard ANSI/TIA-568-C.2 Certification ROHS/CE
High Light

T568B RJ45 Network Patch Panel

,

T568B rack mount patch panel

,

T568B Network Patch Panel

Product Description

Straight 1U RJ45 Network Patch Panel 24 Port Cat6 Rack Mount



patch panel base on the ISO/IEC11801/TIA/EIA568,YD/T926.3-2001 Standard.

Patch Panels are central switching gears between audio equipments. They are used to switch and route analog and digital audio signals from and to equipments in recording or broadcast studios, OB vans, churches, theatres, stadiums, arenas, etc



Features

1. 100% passed FLUKE DTX-1800 test.
2. 15 years quality guarantee.
3. IDC fits for 22-26 AWG solid wire.
4. Insertion Life:750 times MIN
5. Punching Life:250 times MIN
6. Meet TIA/EIA-T568A and T568B category 6A requirements.
7. It has been designed to exceed TIA/EIA specification.The bandwidths of category 6 up to 500 MHZ.



General Specification

Transmission Standard ANSI/TIA-568-C.2 | ISO/IEC 11801
Total Ports, quantity 24
Color Black
Label Write-on label, easy to identify
Package Quantity 1
Packaging Type Bag
Rack Type EIA 19 in Rack Units 1.0



Mechanical Specification

Panel Style Straight
Material Type High-impact, flame retardant, thermoplastic | Steel
Panel Mounting Flush
Metal Cable Management Optional
Termination Type IDC Wiring T568A | T568B
Conductor termination range 22 AWG - 26 AWG
Conductor type Solid or Stranded
Jack Termination Durability >750 times
IDC Termination Durability >250 times
Dust Cover Yes













FAQ


Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
