Outdoor 12 Cores Mini Fiber Optic Cable ADSS PE Jacket Span 80m 120m

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-ADSS-2
Minimum Order Quantity 10KM
Packaging Details 3KM Per Wooden Drum, Weight: 100KG/KM,115*115*80cm. OEM Size(4KM/5KM per drum) All Ok.
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000km every month
Product Details
Product Name ASU MINI ADSS Cable Fiber Count 2core
Construction Centrel Loose Tube Fiber Type G652d
Jacket PE Jacket Sample Free
Cable Diameter 7.0mm±0.5mm Warrenty 2 Years
High Light

PE Jacket Mini Fiber Optic Cable

,

ADSS Mini Fiber Optic Cable

,

120m ADSS Fiber Optic Cable

Product Description

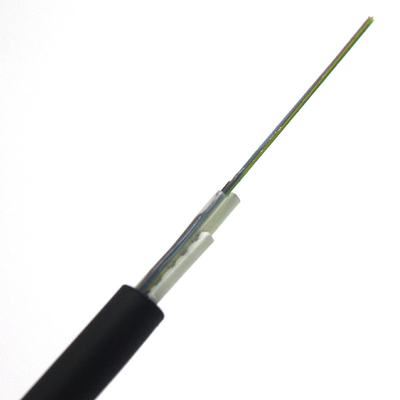

outdoor fibra optical cable 12 cores mini adss cable PE jacket span 80m 120m


This ASU FO of 2~12 core is a adss fiber optic cable. Due to it’s all dielectric self supporting design and material, it’s widely used in FTTH fiber to the home networking. 80 meter and 120 meter are the most common 2 span for this cable. But other span and cable structure can be customize and manufactured.


Features
1. 2 FRP as central strength member, non metallic structure
2. Water blocking material inside the cable
3. Loose tube with fiber jelly compound give fibers protection
4. Rip cord for easily stripe and construction
5. Outer sheat PE, MDPE and HDPE for excellent environment mechanical performance
6. Span 80 meter and 120 meter, customization is also available



APPLICATION
Outdoor cabling
Suitable for aerial dropping



Product Name
MINI ADSS  PE fiber optic cable
Fiber Count
8core
Construction
Centrel
Fiber Type
Single Mode
OuterJacket Materal
PE
Jacket Color
Black
Cable Diameter
7.0mm±0.5mm
Weight
65KG/KM
Central Strength Mem
FRP
Application
Aerial and Duct
Bending Radius
10D/20D(mm)
Sample status
We can provide free sample



Outdoor 12 Cores Mini Fiber Optic Cable ADSS PE Jacket Span 80m 120m 0

Outdoor 12 Cores Mini Fiber Optic Cable ADSS PE Jacket Span 80m 120m 1





Outdoor 12 Cores Mini Fiber Optic Cable ADSS PE Jacket Span 80m 120m 2



Outdoor 12 Cores Mini Fiber Optic Cable ADSS PE Jacket Span 80m 120m 3

FAQ

 Outdoor 12 Cores Mini Fiber Optic Cable ADSS PE Jacket Span 80m 120m 4

Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers. fibra óptica
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
