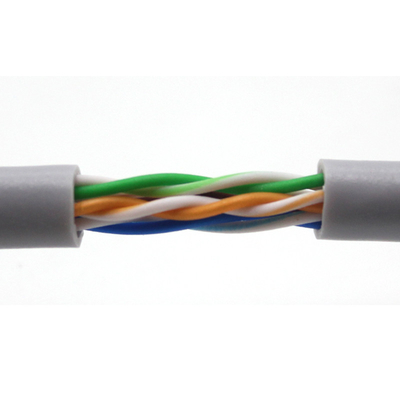

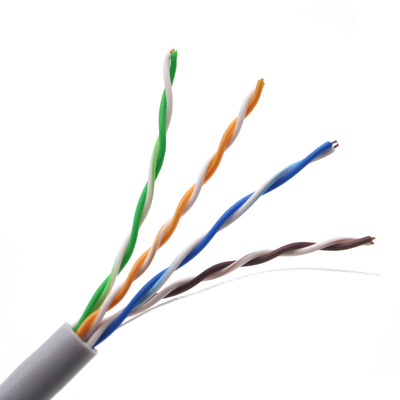

UTP Cat5e 4 Pair Copper Cable CAT5 CAT5E CAT6 RJ45 Male To Male Ethernet Network Cable

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT5E-A5
Minimum Order Quantity 100rolls
Packaging Details 305m/ 1000ft/ Roll 1 Roll/ Box 2 Boxes/ Carton Box Size: 35*35*21cm Carton Size: 37*37*44cm G.W.: 22KG/ Carton
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000boxes every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Cat5e Lan Cable Indoor Cable Jacket New PVC
Frenquence 100Mhz Conductor CCA
Data Rate Support 10/100Base-T Conductor Diameter (mm) 0.51 ± 0.01
Cable Color White Samples Free
High Light

UTP Cat5e 4 Pair Network Cable

,

100Mhz CAT5 Ethernet Network Cable

,

IEC 61156-5 Ethernet Network Cable

Product Description

UTP Cat5e 4 Pair Copper Cable CAT5 CAT5E CAT6 RJ45 Male To Male Ethernet Network Cable 0

                                                      UTP Cat5e 4 Pair Copper Cable CAT5 CAT5E CAT6 RJ45 Male To Male Ethernet Network Cable 1

UTP cat5e 4 pair copper cable CAT5 CAT5E CAT6 RJ45 Male to Male ethernet Network Cable





Cat5E cable is a type of multi conductor cable that contains twisted pairs used for carrying signals. Most often, you will find this cable is used in data transmission. It is also used on computer networks such as Ethernet. This cable provides performance up to 10/100 Mbps speeds at up to 100 MHz. This makes it suitable for 10BASE-T, 100BASE-TX.



Application:
In the horizontal cabling as an installation for laying cable in cable channels and pipes inside of telecommunications equipment and data systems to 350 Mhz. Installation is very easy because of a central element (cross) no individual shield is required. Usable for: 10Base-T, 100 Base-T,, CDDI/TPDDI, ISDN, ATM 155 Mbit/s, TP-PMD 125 Mbit/s, Token Ring 4/16 Mbit/s.

Construction
1. Bare, solid copper conductor, Ø 0,55mm (AWG 24/1)
2. Core insulation SFS Polyethylen
3. layer of plastic foil
4. Plastic laminated aluminium foil
5. PVC-sheath or with halogen free sheath

Standards
ISO/IEC 11801 2.Edition EN 50173-1 TIA/EIA 568-B.2 IEC 61156-5 EN 50288-5-1



More details for the cat5e utp lan cable as below:

Cable Type Cat5e lan cable
Shielding Type UTP
Cable Jacket PVC
Cable Length 1000ft (305m)
Reference Bandwidth 100MHz
Data Rate Support 10/100Base-T
Wire Gauge 24AWG
Cable Color Blue/White/Gray/Black/Yellow/Red
Conductor Type Sold Bare copper
Conductor Diameter (mm) 0.50 ± 0.01
Insulation Diameter 0.97 ± 0.05
Cable Outer Diameter (mm) 5.3 ± 0.4
Operating Temperature -20 to +75°C
Installation Temperature -10 to +50°C
Standard ISO/IEC 11801
