Cat5 Cat 5e UTP CCA Conductor 305m Easy Pull Box Utp Cable
|Place of Origin||CHINA|
|Minimum Order Quantity||100rolls|
|Packaging Details||305m/ 1000ft/ Roll 1 Roll/ Box 2 Boxes/ Carton Box Size: 35*35*21cm Carton Size: 37*37*44cm G.W.: 22KG/ Carton|
|Payment Terms||L/C, T/T, Western Union|
|Supply Ability||5000boxes every month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Item||Cat5e Lan Cable Indoor||Cable Jacket||New PVC|
|Data Rate Support||10/100Base-T||Conductor Diameter (mm)||0.51 ± 0.01|

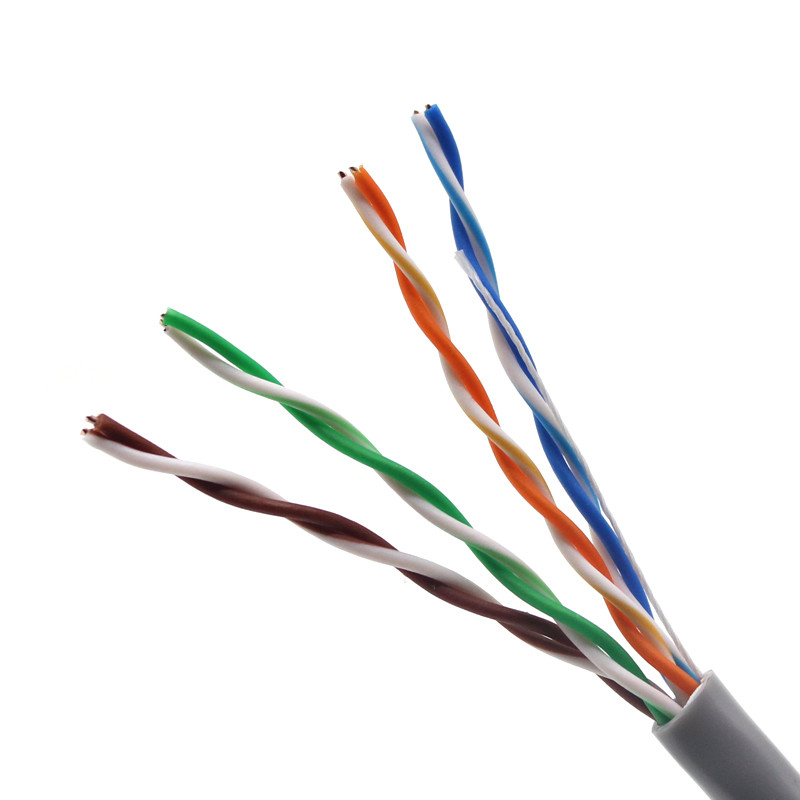

CCA Conductor UTP Cat 5e Cable,
100 MHz 305m CAT5E Utp Cable
cable cat5e/cat5 UTP CCA conductor 305m easy pull box cable utp cat 5e
Cat5E cable is a type of multi conductor cable that contains twisted pairs used for carrying signals. Most often, you will find this cable is used in data transmission. It is also used on computer networks such as Ethernet. This cable provides performance up to 10/100 Mbps speeds at up to 100 MHz. This makes it suitable for 10BASE-T, 100BASE-TX.
In the horizontal cabling as an installation for laying cable in cable channels and pipes inside of telecommunications equipment and data systems to 350 Mhz. Installation is very easy because of a central element (cross) no individual shield is required. Usable for: 10Base-T, 100 Base-T,, CDDI/TPDDI, ISDN, ATM 155 Mbit/s, TP-PMD 125 Mbit/s, Token Ring 4/16 Mbit/s.
1. Bare, solid copper conductor, Ø 0,55mm (AWG 24/1)
2. Core insulation SFS Polyethylen
3. layer of plastic foil
4. Plastic laminated aluminium foil
5. PVC-sheath or with halogen free sheath
ISO/IEC 11801 2.Edition EN 50173-1 TIA/EIA 568-B.2 IEC 61156-5 EN 50288-5-1
More details for the cat5e utp lan cable as below:
|Cable Type||Cat5e lan cable|
|Cable Length||1000ft (305m)|
|Data Rate Support||10/100Base-T|
|Conductor Type||Sold Bare copper|
|Conductor Diameter (mm)||0.50 ± 0.01|
|Insulation Diameter||0.97 ± 0.05|
|Cable Outer Diameter (mm)||5.3 ± 0.4|
|Operating Temperature||-20 to +75°C|
|Installation Temperature||-10 to +50°C|
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
