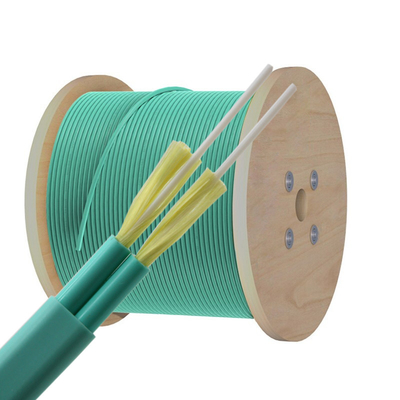

Excellent Mechanical Non Armored Twin Flat Fiber Optic Cable OM1 OM2 OM3 OM4

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GJFJV-2
Minimum Order Quantity 10KM
Packaging Details 1000M/Wood Roll,Size of Wood Roll:55*55*60cm, Weight:42KG
Delivery Time 10-15days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Indoor Fiber Optic Cable Fiber Type OM4
Number Of Fiber 2 Cable Structure Tight-buffered, Loose Tube
Cable Diameter 8.0x3.0 Bending Radius 10D/20D (mm)
Outer Jacket Materail PVC/LSZH Color Light Purple
High Light

OM3 Flat Fiber Optic Cable

,

OM4 Flat Fiber Optic Cable

,

ISO9001 Indoor Fiber Optic Cable

Product Description

Excellent Mechanical Non Armored Twin Flat Fiber Optic Cable OM1 OM2 OM3 OM4 0

                                                             Excellent Mechanical Non Armored Twin Flat Fiber Optic Cable OM1 OM2 OM3 OM4 1

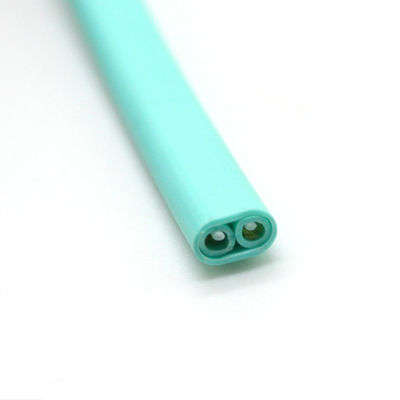

Excellent Mechanical Non-Armored Duplex Twin Tight Buffer Fiber Optic Flat Cable OM1 OM2

The zip cord interconnect cable uses two 900µm or 600µm tight buffered fibres as optical

transmission medium, covered with aramid yarn as strength member, then extruded with a

PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.

Features

  • Tight buffer fiber easy of stripping.
  • Tight buffer fiber have excellent flame-retardant performance.
  • Aramid yarn as strength member make cable have excellent tensile strength.
  • The outer jacket material have many advantages such as anti-corrosion anti-water,
  • anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

Application

  • Duplex fibre flexible connection jumper or pigtail
  • Indoor riser level and plenum level cabling
  • Instruments communication equipments interconnection



Fiber Parameters



CORE SIZE/ FIBER TYPE





ISO/ IEC



MAXIMUM ATTENUATION (DB/KM)

OVERFILL LAUNCH MIN.

BANDWIDTH (MHZ•KM)



EMBc (MHZ•KM)

GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)
850 NM 1300 NM 1550 NM 850 NM 1300 NM 850 NM 1300 NM 850 NM 1300 NM
62.5/125  OM1 3.5 1.2 N/A 200 600 N/A 300 550 32
50 /125 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82
50 /125 OM2 3.0 1.2 N/A 700 500 950 800 550 150
50 /125 OM3 3.0 1.2 N/A 1500 500 2000 1000 550 300
50 /125 OM4 3.0 1.2 N/A 3500 550 4700 1040 550 550
 G.657.A1 Single-mode OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5000 N/A 10,000
 SM OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000


Cable Parameters

Items

Parameters

Fiber count

2

Tight-buffered Fiber

Diameter

850μm±50μm

Material

LSZH

Strength Member

Kevlar/Aramid yarn

Jacket

Diameter

8.0x3.0mm

Material

LSZH/PVC

Color

Light Purple



Excellent Mechanical Non Armored Twin Flat Fiber Optic Cable OM1 OM2 OM3 OM4 2

Excellent Mechanical Non Armored Twin Flat Fiber Optic Cable OM1 OM2 OM3 OM4 3
