SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GJFJV
Minimum Order Quantity 10KM
Packaging Details 1000M/Wood Roll
Delivery Time 15days
Payment Terms T/T, L/C, Western Union
Supply Ability 2000KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name INdoor GJFJV Cable Fiber Type G657a
Number Of Fiber 1CORE Cable Structure Tight-buffered
Cable Diameter 3.0MM Bending Radius 10D/20D (mm)
Outer Jacket Materail LSZH Color Light Yellow
High Light

2.0mm Simplex Fiber Optic Cable

,

GJFJV Simplex Fiber Optic Cable

,

Indoor Fiber Optic Cable 3.0mm

Product Description

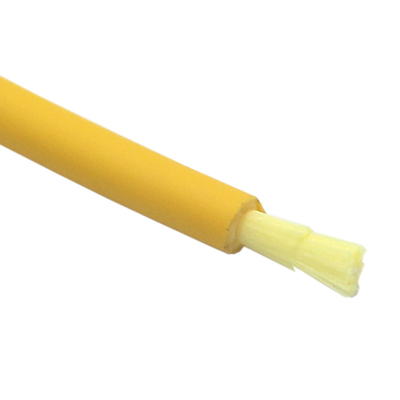

SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord 0
                                                             SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord 1
Factory price SM MM 2.0mm 3.0mm round simplex Fiber optic Cable for fiber patch cord

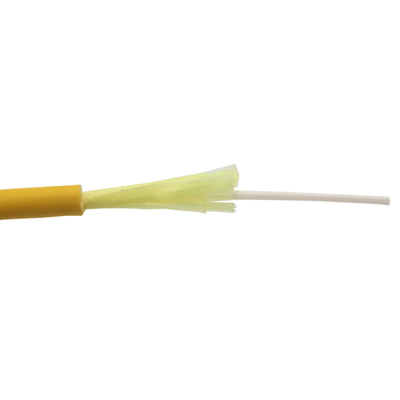

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High

strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and

then is completed with PVC(LSZH)jacket.

Features:

  • Tight buffer fiber ease of stripping;
  • Tight buffer fiber have excellent flame-retardant performance;
  • Aramid yarn as strength member make cable have excellent tensile strengh;
  • The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant
  • and harmless to environment etc;

Applications:

  • Optical fiber jumper or pigtail;
  • Indoor riser level and plenum level cable distribution;
  • Interconnect between instruments, communication equipments;





Fiber Parameters



CORE SIZE/ FIBER TYPE





ISO/ IEC



MAXIMUM ATTENUATION (DB/KM)

OVERFILL LAUNCH MIN.

BANDWIDTH (MHZ•KM)



EMBc (MHZ•KM)

GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)
850 NM 1300 NM 1550 NM 850 NM 1300 NM 850 NM 1300 NM 850 NM 1300 NM
62.5/125  OM1 3.5 1.2 N/A 200 600 N/A 300 550 32
50 /125 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82
50 /125 OM2 3.0 1.2 N/A 700 500 950 800 550 150
50 /125 OM3 3.0 1.2 N/A 1500 500 2000 1000 550 300
50 /125 OM4 3.0 1.2 N/A 3500 550 4700 1040 550 550
 G.657.A1 Single-mode OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5000 N/A 10,000
 SM OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000


Cable Parameters

Items

Parameters

Fiber count

1

Tight-buffered Fiber

Diameter

850μm±50μm

Material

LSZH

Strength Member

Kevlar/Aramid yarn

Jacket

Diameter

3.0x3.0mm

Material

LSZH/PVC

Color

Light Green

SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord 2

SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord 3

SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord 4










FAQ

SM MM 2.0mm 3.0mm Round Simplex Fiber Optic Cable For Fiber Patch Cord 6

Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.fiber optik kablo
