4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables

  • 4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables
  • 4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables
Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6a-PC-UTP
Minimum Order Quantity 10000meters
Packaging Details 5M/Bag , 75Bags/Carton, Carton size:47*33*29,Carton Weight:12.5KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 50000M/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CAT6a Unshielded Patch Cord Conductor Material Stranded Pure Bare Copper
Number Of Conductors 4P Conductor Diameter 26AWG(7*0.16MM)
Insulation Materials HDPE Outer Sheath PVC
Cable Outer Diameter (mm) 6.1 ± 0.4 Color Blue/Grey In Stock，Customized Any Color
High Light

Telephone Cat6a Patch Cord

,

4 Pair Cat6a Patch Cord

,

UL Lan Network Cables
Product Description

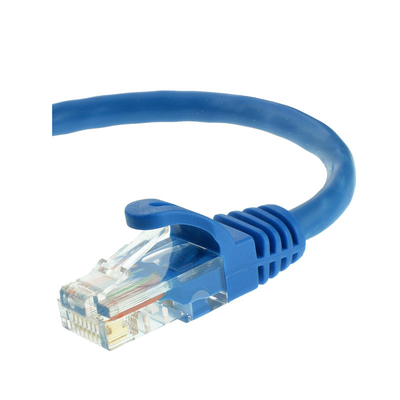

4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables 0

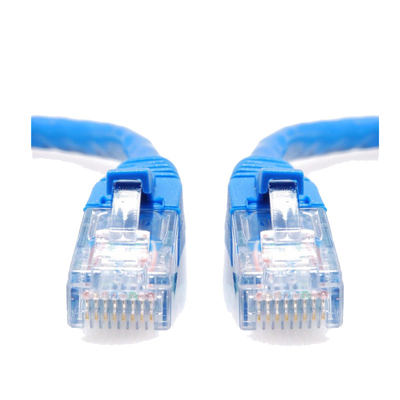

                                                             4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables 1

Network Patch Cord UTP CAT6a 8p8c Full Copper Unshielded 24awg 26awg Patch Cables



Cat6a UTP patch cable features 24/26AWG unshielded twisted pair stranded copper cable with

a high performance modular plug at each end. Snagless design protects the locking clips on the

RJ45 connectors from being damaged or snapped off during installation.
It exceeds the performance of the Cat6a Ethernet network cable standard and offers the

cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 10G

within 100 meters of cable.



High Transmission Performance

  • Pure Bare Copper, 3-prong & 50μ'' Gold-plated Contacts
  • Support PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
  • ≥ 750 Insertion Cycles
  • Universal Connectivity for LAN Network Components
  • Available in Multiple Colors & Lengths
  • 4 Twisted Pairs Reduce Crosstalk, Noise and Interference
  • Backward Compatible with Cat5e & Cat 5, 250 MHz Bandwidth
  • Tested with a Fluke DSX-8000 Versiv CableAnalyzer
  • CE, Reach, RoHS Certified



Features:

● Complies with Category 6a , ANSI/TIA/EIA 568B & ISO/IEC 11801 standard, RJ45 standard.

● Supports transmission of digital and analogue voice, data and video signal.reach a very good

   shielding effect.

● Rated Temperature: -20° to +75°



Application:

● 100 Base T (IEEE 802.3)

● Fast Ethernet (IEEE 802.3u)

● 100vg-AnyLAN (IEEE 802.12)

● Token Ring (IEEE 802.5)

● TP-PMD (ANSI X3T9.5)

● 1000 Mbps CDDI

● 10G



Cable Construction

Item

CAT6a UTP Patch Cord

Inner conductor

Material

Bare Copper Pass Fluke Test

Diameter

7×0.2MM (24AWG stranded)

Insulation(Dielectric)

Material

Color-coded PE(Polyethylene)

Thickness

≥0.21mm

Diameter

1.05 ± 0.01mm

Cross Separator

Material

Plastic

Outer Jacket

Material

PVC

Thickness

≥0.65mm

Nominal O.D

6.10mm ± 0.10mm

Color

Any

Twisted pair

N/A

Pair 1 : Blue,White / Blue

Pair 2 : Orange,White / Orange

Pair 3 : Green,White / Green

Pair 4 : Brown,White / Brown

4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables 2

4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables 3

4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables 4

4 Pair UTP Cat6 Cat6a Patch Cord , Telephone Lan Network Cables 5

FAQ

Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
