Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | CAT6a UTP Lan Cable Indoor | Conductor Material | 100% Solid Bare Copper |
|---|---|---|---|
| Insulation Materials | Color-coded PE | Outer Sheath | PVC |
| Reference Bandwidth | 750MHz | Cable Outer Diameter (mm) | 6.5±0.2mm |
| Color | Blue/Grey In Stock，Customized | Sample Status | In Stock |
| Highlight | Utp Unshield CAT6A CAT7 CAT8 Cable,500MHZ CAT6A CAT7 CAT8 Cable,500MHZ Ethernet Copper Cable |
||
Product Description

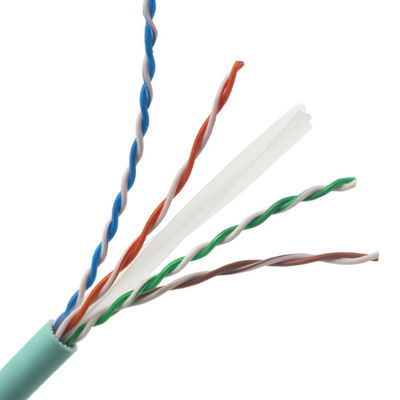

Utp Unshield CAT6A CAT7 CAT8 Cable 500MHZ Ethernet Copper Cable 4 Pairs
Cat6a Cat7 Cat8 Utp Unshield 500MHZ Ethernet Copper Cable Price Per Meter 4 Pairs 305m Cable
Aixton Cat6a was developed to achieve maximum distance of 100 meters for full 10 Gigabit network speeds.
This robust spec will afford you the extra headroom across your network that Cat6 can not. The 750MHz
performance is double that of Category 6 and five times the bandwidth capacity of Category 5e. Our Cat6a
bulk cable tested for compliance with all ANSI/TIA-568.2-D Cat 6 specifications.
Features
Generic cabling systems.
Standards - ISO 11801 Edition 2.0 & UL verified to ANSI/TIA – 568 - C.2
Including 10Base -T, 100Base -T 1000Base -T, ATM 10G & Token Ring
IEEE 802.3 af (PoE), IEEE 802.3 at (PoE+)
Packaging & Delivery
1. Selling Units: Single item
2. Single catrton size: 50X40X40 cm
3. Single gross weight: 29.700 kg
4. Package Type: 305m per easy pull box, two boxes per outer carton box
| Product Name | UNSHIELDED TWISTED PAIR MULTI CORE CAT6a UTP CABLE INDOOR | |
| Inner Conductor | Material | 100% Pure Copper |
| Diameter | 0.57mm ± 0.01mm ( 23AWG ) | |
| Insulation ( Dielectric ) | MaterialThicknessDiameter | Color-coded PE (Polyethylene) |
| ≥ 0.21mm | ||
| 1.03mm ± 0.01mm | ||
| Cross Separator | Material | Plastic |
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Outer Jacket | Material | New PVC (Rip code, Optional) |
| Thickness | ≥ 0.65mm | |
| Nominal O.D | 6.50mm ± 0.10mm | |
| Reference Standard | Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard | |
| Rated Temperature | -20℃ to +70℃ | |
| Supports Transmission | Digital and analogue voice, data and video signal | |
Features
FAQ
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
discounted prices.
