Sftp CAT6 Ethernet Cable 4 Pair 305m 300m Cat Six Cable 23AWG

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6-SFTP-IN
Minimum Order Quantity 100rolls
Packaging Details 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:18KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 20000boxes/month
Product Details
Product Name CAT6 SFTP Lan Cable Indoor Conductor Diameter 23AWG(0.57±0.01mm)
Insulation Materials Color-coded PE Screen Braid Copper Clad Aluminum
Color Blue/Grey In Stock,Customized Data Rate Support 10/100/1000Base-T
Package 305m/1000ft/box Bend Radius (mm) 32.8
High Light

Sftp CAT6 Ethernet Cable

,

300m CAT6 Ethernet Cable

,

Cat Six Cable 23AWG

Product Description

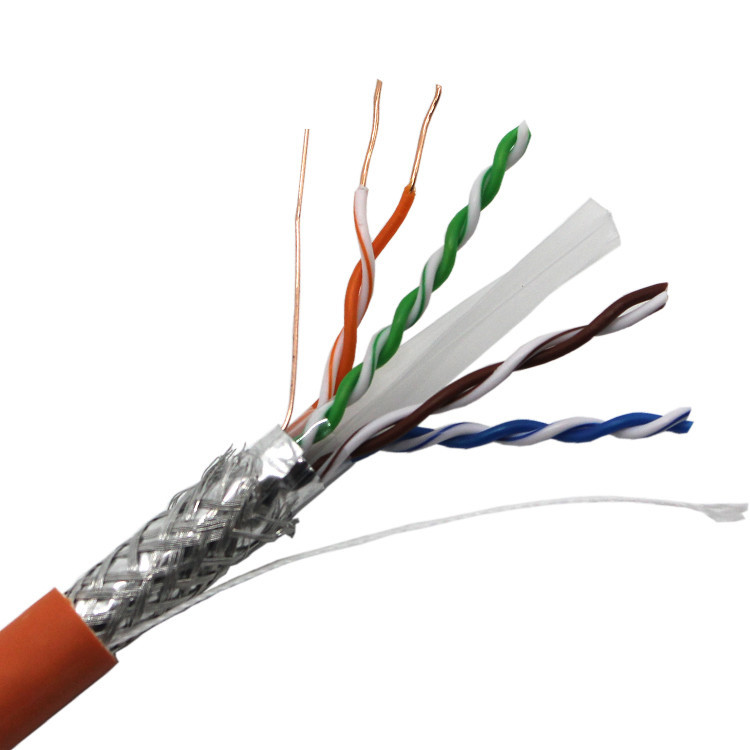

Sftp CAT6 Ethernet Cable 4 Pair 305m 300m Cat Six Cable 23AWG



Cat6 Sftp Ethernet Cable Copper Cable Price Per Meter 4 Pair 305m 300m Cable Network Cat6



In the horizontal cabling as an installation for laying cable in cable channels and pipes inside of telecommunications equipment and data systems to 350 Mhz. Installation is very easy because of a central element (cross) no individual shield is required. Usable for: 10Base-T, 100 Base-T, 1000 Base-T, CDDI/TPDDI, ISDN, ATM 155 Mbit/s, TP-PMD 125 Mbit/s, Token Ring 4/16 Mbit/s.



Features

1. Cat6 SFTP Shielded Twisted Pair Cable
2. Doube Shields With Al-Foil and Tinned Copper Braiding
3. Pass FLUKE Test High Performance Computer Networking Cable
4. Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
5. Digital Communication Applications of up to 550MHz Bandwidth
6. Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
7. CMX / CM / CMG / CMR rated PVC Jacket



Package

1. 1000ft/ 305m per Wood Roll
2. 2 Wood Roll per carton
3. Size of Wood Roll: 38*38*26mm
4. Size of carton: 76*40*28mm
5. Grow weight/Box: 19Kg
6. Grow weight/Carton: 38.9Kg





Parameter

Product Name DOUBLE SHIELDED TWISTED PAIR 8 CORE CAT6 SFTP CABLE INDOOR
Inner Conductor Material 100% Pure Copper
Diameter 0.57mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Shielded Layer Material Aluminum Foil
Braided MaterialTypeDiameter CCA, Aluminum, Copper, TC and so on
32, 48, 64, 80, 96, 112, 128, 144
0.08mm, 0.10mm, 0.12mm
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Outer Jacket Material New PVC (Rip code, Optional)
  Thickness ≥ 0.65mm
  Nominal O.D 6.80mm ± 0.10mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal
