1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT7-SFTP
Minimum Order Quantity 100rolls
Packaging Details 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:20KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000Rolls/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name CAT7 SFTP Lan Cable Conductor Material Pure Bare Copper
Conductor Diameter 23AWG(0.58±0.01MM) Insulation Materials Color-coded PE
Shield Twist Aluminum Foil Reference Bandwidth 1000MHz
Data Rate Support 1G/10GBase-T Package 305m/1000ft/Wood Roll
High Light

1000MHz CAT6A CAT7 CAT8 Cable




ROHS cat7 lan cable

Product Description

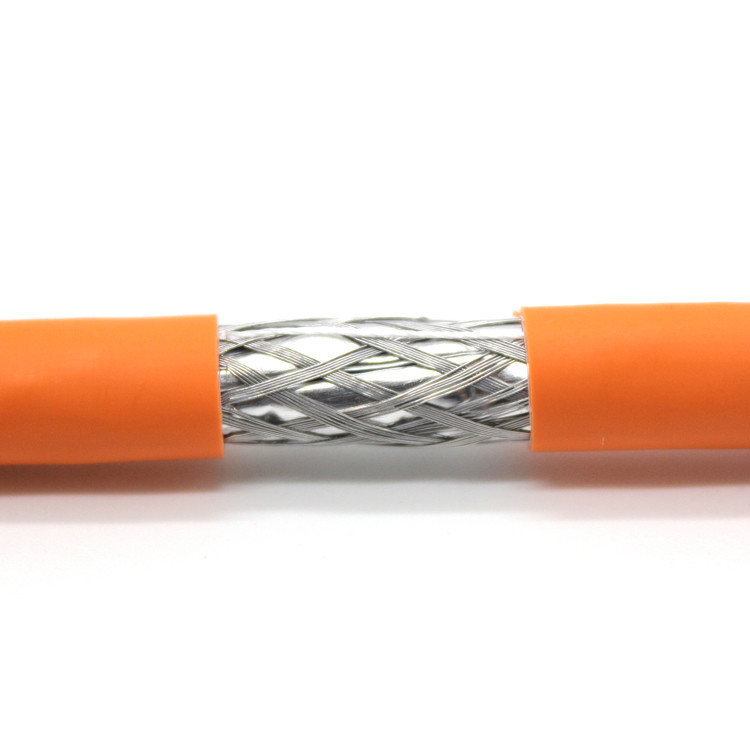

1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded 0

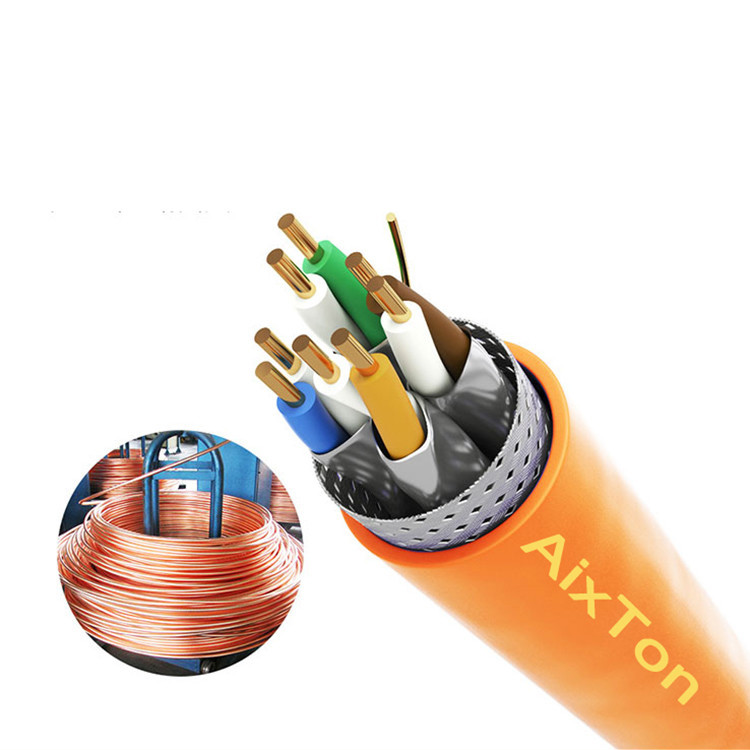

                                                             1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded 1
1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded
Cat6A Cat7 Cat8 Ethernet Bulk Cable sftp shielded lan cable
Aixton Cat7 network lan cable has been designed as a standard for 10 Gigabit Ethernet over
100m of copper cabling. It has a higher bandwidth of up to 1000MHz and backwards
compatible with traditional Cat5e,Cat6 and Cat6a Ethernet.
This cable offers extensive shielding to reduce signal attenuation and is relatively stiff in
comparison to previous generations of cabling. It is great for datacenters, server rooms, and
telecommunications rooms.

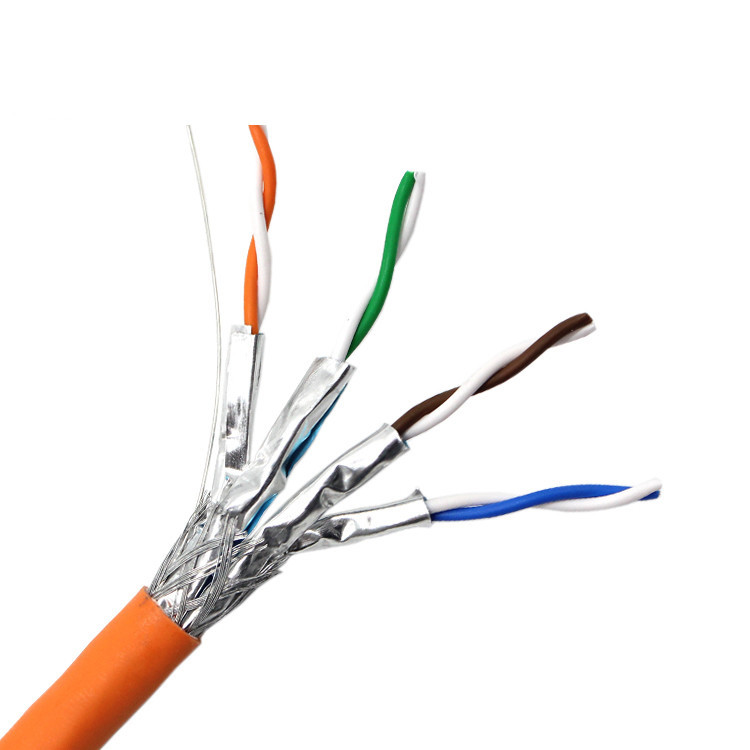

1. Bare solid copper conductor
2. Foamed PE insulation
3. lndividual Shield:PET/AL
4. Drain wire:7×0.2TC
5. Overall Shield: TC Braid
6. Rip cord ( optional)
7. Lead free PVC or LSOHjacket
8. Rated temperature: 60ºC,75ºC
9. Flammability grade:CMX,CM,CMG,CMR
10. Reference Standard:UL1581,UL444,TIA/EIA 568B

1. 1000ft/ 305m per Wood Roll
2. 2 Wood Roll per carton
3. Size of Wood Roll: 38*38*26mm
4. Size of carton: 76*40*28mm
5. Grow weight/Box: 18Kg
6. Grow weight/Carton: 40Kg

Inner Conductor Material 100% Pure Copper
Diameter 0.58mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Shielded Layer Material Aluminum Foil
Braided MaterialTypeDiameter CCA, Aluminum, Copper, TC and so on
32, 48, 64, 80, 96, 112, 128, 144
0.08mm, 0.10mm, 0.12mm
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Outer Jacket Material New PVC (Rip code, Optional)
  Thickness ≥ 0.65mm
  Nominal O.D 7.00mm ± 0.10mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal

 1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded 2

1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded 3

1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded 4

1000MHz CAT6A CAT7 CAT8 Cable Twist Aluminum Foil Sftp Shielded 5
