Utp 23AWG 4 Pair CAT6 Ethernet Cable Weatherproof Cat6 Cable

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6-UTP-IN
Minimum Order Quantity 100rolls
Packaging Details 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:18KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000Rolls/month
Product Details
Product Name Outdoor CAT6 UTP LAN CABLE Conductor Diameter 0.57±0.01MM
Insulation Materials Color-coded PE Inner Sheath PVC
Data Rate Support 10/100/1000Base-T Samples Free
Brand Aixton Or OEM Cable Outer Diameter (mm) 7.0 ± 0.2
High Light

4 Pair CAT6 Ethernet Cable

,

Utp 23AWG CAT6 Ethernet Cable

,

weatherproof cat6 cable

Product Description

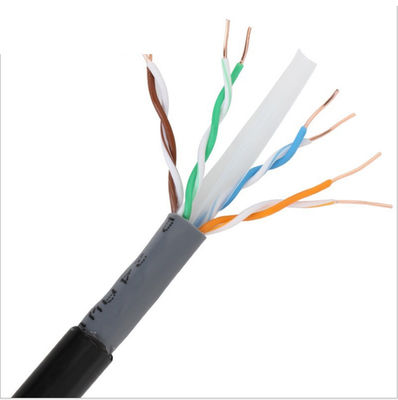

Utp 23AWG 4 Pair CAT6 Ethernet Cable Weatherproof Cat6 Cable



Utp Cable 23AWG 4 Pair Cat 6 Waterproof Direct Burial Cable Outdoor Cat6 Ethernet Cable

Our unshielded Cat6 outdoor waterproof direct burial ethernet network cable allows you

to extend your internet connection even in the harshest environments. Its weatherproof

double outer jacket will enableyou to bury your lines underground while protecting your

wires from various elements. This supportshigh bandwidth up to 550 MHz and speeds

up to 1000mbps giving you flawless uninterrupted connection for your home or workplace.



Material Instruction
1. CCA or 23AWG Soft Plain Copper
2. Eco-friendly,pollution-free and new materials selected.Promise new material only.
3. Insulation: Solid HDPE.
4. Eco-friendly PE Jacket , high-temperature resistance,long working life.



Standard / Certificate
1. Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
2. Certificates ISO9001,14000, ROHS.FCC,CE



Parameter

Product Name OUTDOOR WATER PROOF UNSHIELDED TWISTED PAIR 8 CORE CAT6 UTP CABLE
Inner Conductor Material 100% Pure Copper
Diameter 0.57mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Inner Sheath Material New PVC (Rip code, Optional)
Outer Sheaht Material PE
  Thickness ≥ 0.65mm
  Nominal O.D 7.0mm ± 0.20mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal
Features







RFQ


Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
