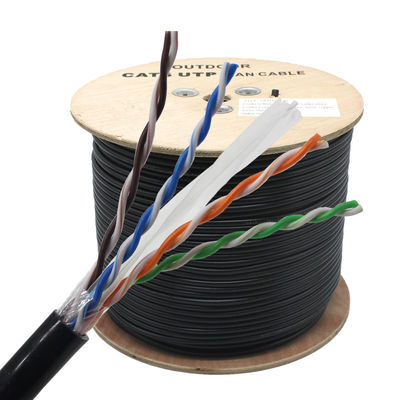

PE Jacket CAT6 Ethernet Cable 4 Pairs Waterproof Outdoor Category 6 Data Cable

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6-UTP-Out
Minimum Order Quantity 100rolls
Packaging Details 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:18KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000Rolls/month
Product Details
Item Outdoor CAT6 LAN CABLE Shield Type UTP
Insulation HD-PE Length 1000ft
Data Rate Support 10/100/1000Base-T Sample Status Free
Connector RJ45, RJ45 Metal Shield Packing Wooden Drum
High Light

PE Jacket CAT6 Ethernet Cable

,

UL444 CAT6 Ethernet Cable

,

UL444 Category 6 Data Cable

Product Description

PE Jacket CAT6 Ethernet Cable 4 Pairs Waterproof Outdoor Category 6 Data Cable



Fluke Pass Network Single PE Jacket CAT6 Copper 4pairs Data Waterproof Outdoor LAN Cable

Category 6 Data Communication Cable is suitable to be used as structured cabling for voice and high speed data in commercial and residential building for voice, video and LAN data lines, when they are installed in air return ducts or when limiting the transmission of smoke is required.



Features

1. High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc.
2. Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed .
3. 100Base-TX,100Base-T2 and 100Base-T4 standard.
4. Can be used for voice, integrated service data network (ISDN).
5. Long transmission distance, small transmission loss, wear resistance, resistance to pressure.



Application

● RoHS Compliant,CE,FCC

● ATM 155Mbps

● Ethernet 10 BASE-T,100BASE-TX,100BASE-VG,100BASE-T4

● 1000Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)

● Fast Ethernet (IEEE 802.3u)

● 1000vg-AnyLAN (IEEE 802.12)

● Token Ring (IEEE 802.5)

● TP-PMD (ANSI X3T9.5)

● 1000 Mbps CDDI



Parameter

Product Name OUTDOOR WATER PROOF UNSHIELDED TWISTED PAIR 8 CORE CAT6 UTP CABLE
Inner Conductor Material 100% Pure Copper
Diameter 0.57mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Inner Sheath Material New PVC (Rip code, Optional)
Outer Sheaht Material PE
  Thickness ≥ 0.65mm
  Nominal O.D 7.0mm ± 0.20mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal
Features







RFQ


Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
