OEM Outdoor 300m Cat6 Utp Network Cable Double Jacket Waterproof

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6-UTP-OT
Minimum Order Quantity 100rolls
Packaging Details 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:18KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000Rolls/month
Product Details
Product Name Outdoor CAT6 UTP LAN CABLE Conductor Diameter 0.57±0.01MM
Insulation Materials Color-coded PE Inner Sheath PVC
Outer Sheath HDPE Data Rate Support 10/100/1000Base-T
Samples Free Brand Aixton Or OEM
Cable Outer Diameter (mm) 7.0 ± 0.2
High Light

300m Cat6 Utp Network Cable


Outdoor Cat6 Utp Network Cable


Double Jacket CAT6 Ethernet Cable

Product Description

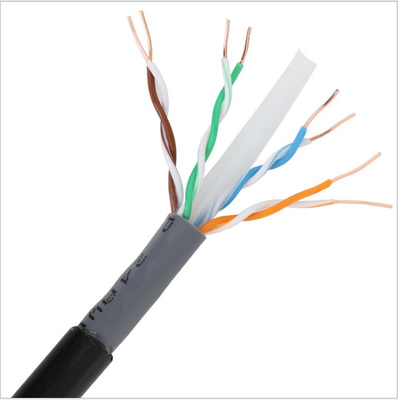

OEM Outdoor 300m cat6 utp network cable double jacket waterproof cables



Our unshielded Cat6 outdoor waterproof direct burial Ethernet network cable allows you

to extend your internet connection even in the harshest environments. Its weatherproof

double outer jacket will enable you to bury your lines underground while protecting your

wires from various elements. This supports high bandwidth up to 550 MHz and speeds

up to 1000mbps giving you flawless uninterrupted connection for your home or workplace.


Material Instruction
1. CCA or 23AWG Soft Plain Copper
2. Eco-friendly,pollution-free and new materials selected.Promise new material only.
3. Insulation: Solid HDPE.
4. Eco-friendly PE Jacket , high-temperature resistance,long working life.


Standard / Certificate
1. Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
2. Certificates ISO9001,14000, ROHS.FCC,CE



Inner Conductor Material 100% Pure Copper
Diameter 0.57mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Inner Sheath Material New PVC (Rip code, Optional)
Outer Sheaht Material PE
  Thickness ≥ 0.65mm
  Nominal O.D 7.0mm ± 0.20mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal








Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
