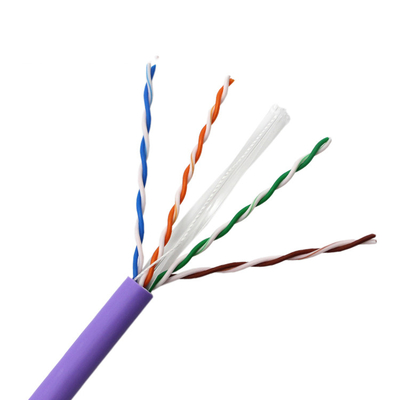

Indoor 305m Network Cat6 Cable Fluke Pass 4pr 23 Awg Roll Utp
|Place of Origin||CHINA|
|Minimum Order Quantity||100rolls|
|Packaging Details||305m/1000ft/box ,2boxes/carton,Carton size:40*40*50cm, Carton weight :28KG|
|Payment Terms||T/T, L/C, Western Union|
|Supply Ability||5000boxes per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Number Of Conduct||8||Insulation||Color-coded PE|
|Inner Conductor Material||100% Solid Copper||Outer Jacket Material||LSZH|
|Outer Jacket Nominal O.D||6.2mm ± 0.10mm||Color||Purple (Color Customization)|
|Data Rate Support||10/100/1000Base-T||Standard||ISO/IEC 11801, ANSI/TIA-568-C.2|
305m Network Cat6 Cable,
Utp Network Cat6 Cable,
4pr CAT6 Ethernet Cable
manufacturer 305m network cable indoor fluke pass 4pr 23 awg roll cable utp cat6
Cat6 cable is tested bandwidth broadband, audio and video applications, best practiced for office, home, building and construction
areas installations. Providing enhanced performance in any environment. Suggested for long run installations for network adapters,
routers, switches, DSL/modem, hubs and keystone jacks, this cable recommended where high-performance data structure is required.
- Pure Bare Copper Transmit Faster while Lasting the Distance than CCA
- Tangle and Twist-free Packaging
- Marked Every 1m (3.28ft) on Cable Makes Measuring Easy
- Support PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
- CE, Reach, RoHS Certified
- CMR Rated (Riser) for Use in between Floors, in-Wall, and Non-plenum Spaces
- Colored Cables for Easy Identification and Troubleshooting
- Tested with a Fluke DSX-8000 Versiv CableAnalyzer
Bare copper, PE insulation, Green Color LSZH jacket.
|Product Name||UNSHIELDED TWISTED PAIR 8 CORE CAT6 UTP CABLE LSZH JACKET|
|Inner Conductor||Material||100% Copper|
|Diameter||0.57mm ± 0.01mm ( 23AWG )|
|Insulation ( Dielectric )||MaterialThicknessDiameter||Color-coded PE (Polyethylene)|
|1.03mm ± 0.01mm|
|Shielded Layer||Material||Transparent Foil|
|Twisted Pair||N/A||Pair 1: Blue, White/ Blue|
|Pair 2: Orange, White/ Orange|
|Pair 3: Green, White/ Green|
|Pair 4: Brown, White/ Brown|
|Outer Jacket||Material||New LSZH(Rip code, Optional)|
|Nominal O.D||6.20mm ± 0.10mm|
|Reference Standard||Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard|
|Rated Temperature||-20℃ to +70℃|
|Supports Transmission||Digital and analogue voice, data and video signal|
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
