Outdoor Jelly Filled Waterproof UTP STP Cable , 305m Network Lan CAT6 Ethernet Cable

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS,UL
Model Number AXT6-FTP-OUT
Minimum Order Quantity 100rolls
Packaging Details 305m/ 1000ft/ Plywood Reel,2 Reels/ Carton,Plywood Reel Size: 32cm (Diameter) * 26cm (Height) Carton Size: 62*31*25cm
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000rolls every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Type FTP CAT6 Armoured Double Sheath Lan Cable Application Outdoor Use
Shielding Type FTP Cable Jacket PVC+PE
Cable Length 1000ft (305m) Wire Gauge 23AWG(Customize 24AWG)
Cable Color Black Conductor Type Sold Bare Copper
Conductor Diameter (mm) 0.57 ± 0.01 Warranty 1year
High Light

ISO9001 UTP STP Cable

,

305m UTP STP Cable

,

Jelly Filled Ethernet CAT6 Cable

Product Description

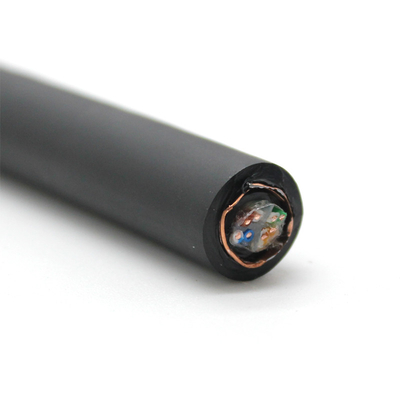

Outdoor Jelly Filled Waterproof UTP STP Cable , 305m Network Lan CAT6 Ethernet Cable 0

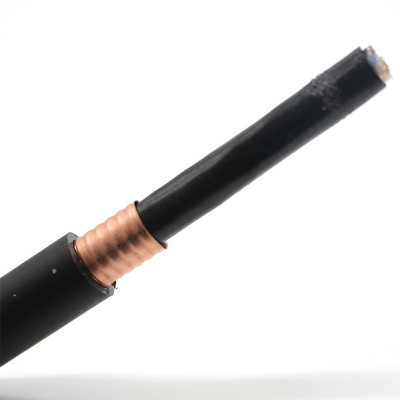

                                                             Outdoor Jelly Filled Waterproof UTP STP Cable , 305m Network Lan CAT6 Ethernet Cable 1

CAT 6 UTP STP Outdoor Jelly Filled Waterproof Cable 305m Network CAT6 Cable Manufacturers

Aixton Gel-filled armour outdoor cat6 lan cable is used for Engineering wiring. It can be used

underground. With high performace(pass fluke test) and double jacket, the cable could be used

over 10 years.



Features

● Complies with Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC 11801 standard.

● Supports transmission of digital and analogue voice, data and video signal.

● Products adopts Steel Armour able to reach a very good strengthening effect.

● Rated Temperature: -40° to +70°



Application

● 1000 Base T (IEEE 802.3)

● Fast Ethernet (IEEE 802.3u)

● 1000vg-AnyLAN (IEEE 802.12)

● Token Ring (IEEE 802.5)

● TP-PMD (ANSI X3T9.5)

● 1000 Mbps CDDI

● ATM 655 Mbps

Cable Construction

Inner conductor

Material

Bare Copper

Diameter

0.56 ± 0.01mm (23AWG)

Insulation(Dielectric)

Material

Color-coded PE (Polyethylene)

Thickness

≥ 0.19mm

Diameter

1.02 ± 0.03mm

Shield

Material

Mylar

Inner Jacket

Material

PE

Color

Black

Armour

Material

Steel Armour

Outer Jacket

Material

PE

OD

9.8±0.3mm

Color

Black

Twisted pair

N/A

Pair 1 : Blue, White / Blue

Pair 2 : Orange, White / Orange

Pair 3 : Green, White / Green

Pair 4 : Brown, White / Brown





FAQ


Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
