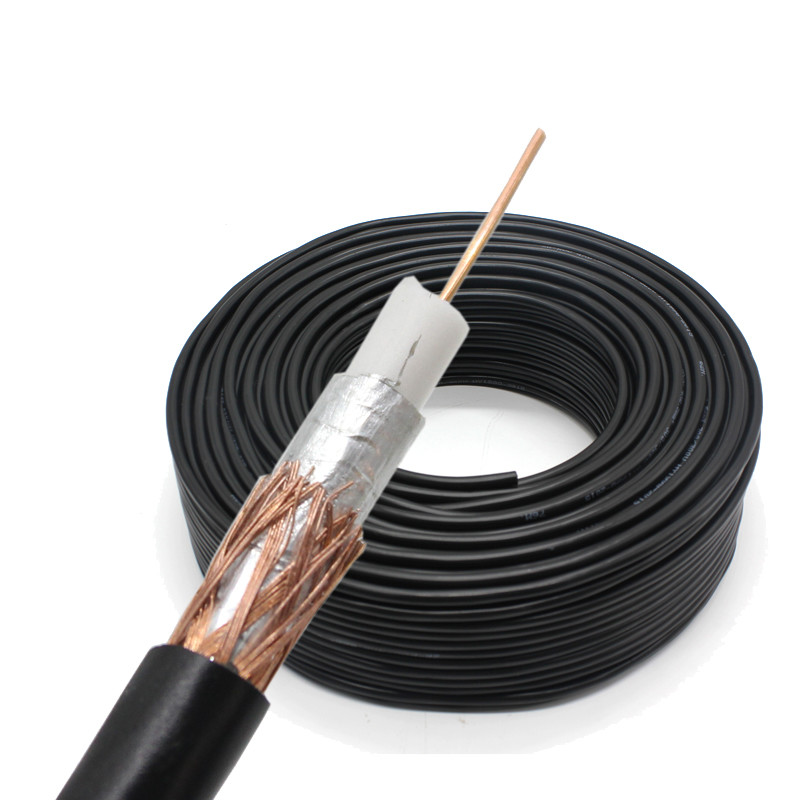

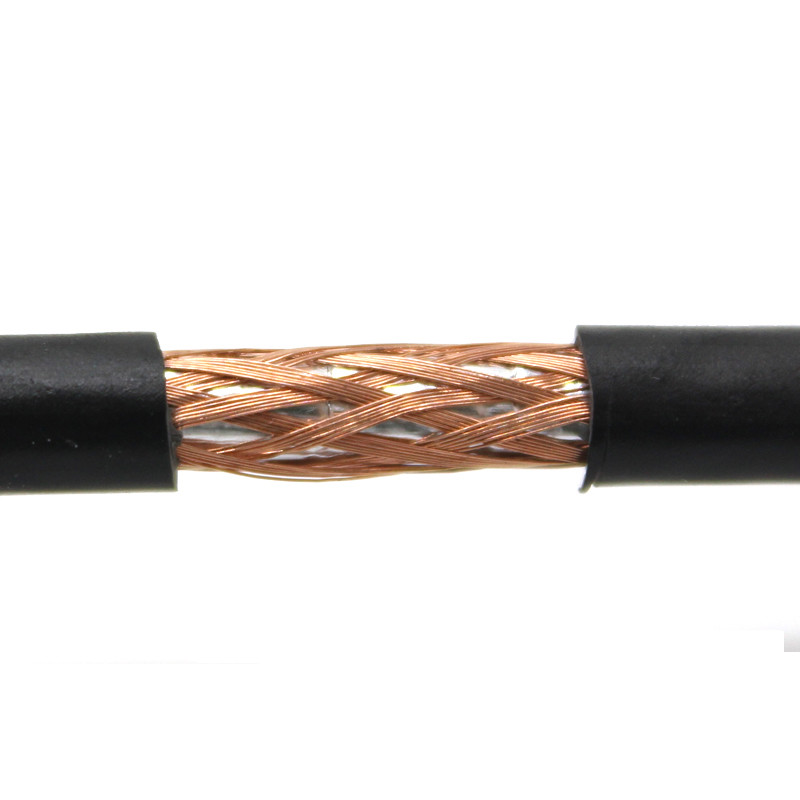

Siamese Communication RG59 Coaxial Cable , Camera CCTV RG6 Coaxial Cable

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-RG59
Minimum Order Quantity 30000meters
Packaging Details Wooden Drum
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 500km every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name RG59 Coaxial Cable Center Conductor Material Bare Copper Or CCS
Conductor Diameter 0.81mm Insulation Diameter 4.7mm
First Shield AL Foil Braiding Coverage 40%-95% Al Braid Coverage
Color Black Or White Application TV Or Satellite Antenna
High Light

AL Foil RG59 Coaxial Cable

,

Siamese Communication RG59 Coaxial Cable

,

Camera CCTV RG6 Coaxial Cable

Product Description

Siamese Communication RG59 Coaxial Cable , Camera CCTV RG6 Coaxial Cable 0

                                                               Siamese Communication RG59 Coaxial Cable , Camera CCTV RG6 Coaxial Cable 1

Features
1. 100% tested ;
2. Low Attenuation;
3. High reliability ;
4. Return Loss: >20dB (5-2300MHz) ;
5. Lifetime Warranty ;
6. Impedance: 75+/-3 Ohms;
7. CE & RoHS, ETL, UL compliant ;
8. Velocity of Propagation: 85%



Construction
Type 1. Single round Coaxial cable type (RG59B/U caxial cable)
Center Conductor: 0.58+0.01mm 41% CCS or Bare Copper
Dielectric: 3.7+/-0.05mm Solid PE
Shield: Foil optional
Braid Coverage: 60 - 95% Cu or CCA wires
Jacket: 6.15+0.05mm PVC



Type 2. Composite type / Combo Type (all under 1 outer jacket)
Combo 1: RG59B/U + 2*0.50mm2 (0.75mm2) power wire
Combo 2: RG59B/U + 2*0.50mm2 +2*0.22mm2 power wire
Combo 3: RG59B/U + 2*0.75mm2 +2*0.22mm2 power wire



Type 3. Siamese Type (RG59 & power wires figure zip 8 in siamese type)
Siamese 1: RG59B/U + 2*0.50mm2 (0.75mm2) power wire
Siamese 2: RG59B/U + 2*0.50mm2 +2*0.22mm2 power wire
Siamese 3: RG59B/U + 18AWG/2core

Product name
RG59 Coaxial Cable
Center Conductor Material
BC or CCS
Conductor Diameter
0.81mm
Insulation
Foam PE
Insulation Diameter
4.7mm
First Shield
AL Foil
Second Shield
AL Braid
Braiding Coverage
40%-95% Al Braid Coverage
Jacket Material
PVC,PE,LSZH
Application
CCTV or Satellite Antenna
Sparker Test
4000VAC
Impedance
75+3 Ohm
Return Loss
20dB min (5-2300MHz)
