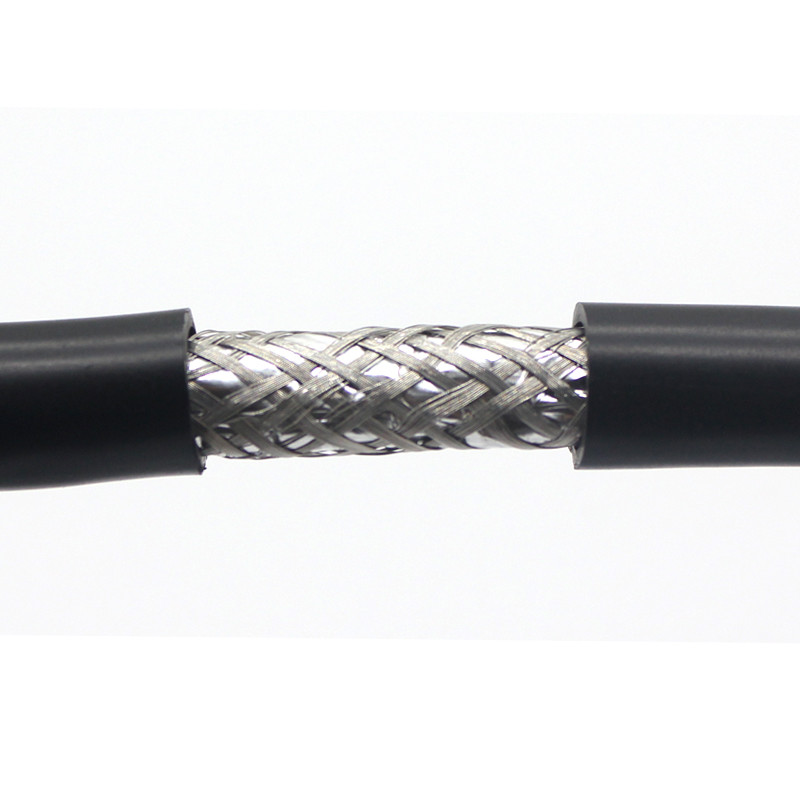

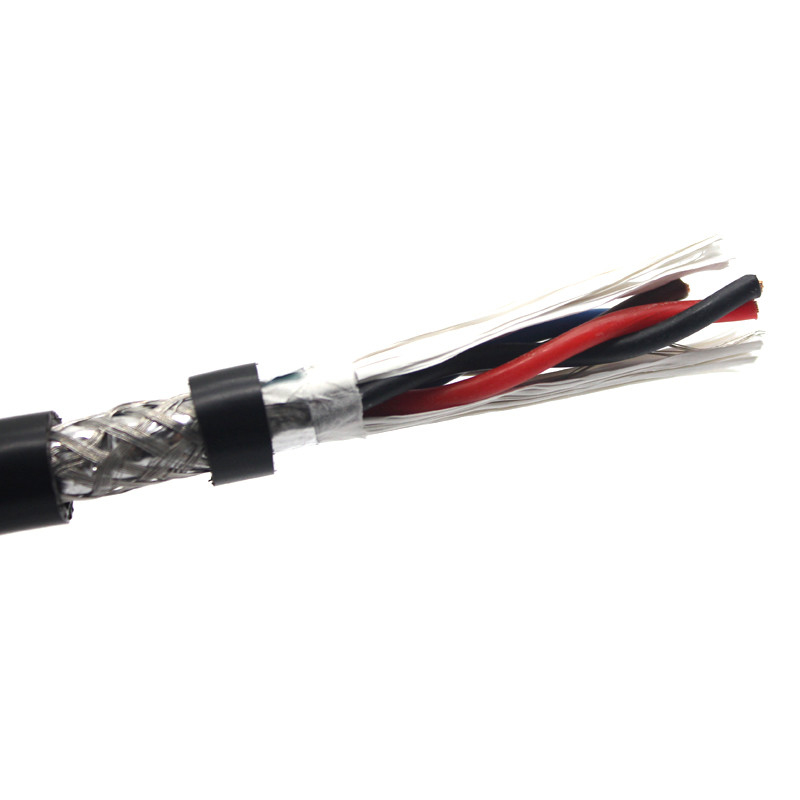

PVC Shielded RS485 Control Cable , 4 Core Shielded Cable Wire

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number RS-485-205
Minimum Order Quantity 50Rolls
Packaging Details 100M/Roll
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000Rolls/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name RS-485 Cable Brand Name AIXTON/OEM
Conductor Material 100% Pure Copper Number Of Conductors 2
Conductor Diameter 1.0mm² Outer Sheath PVC
FirstShield TC Braiding(support AL And BC ) Samples Free
High Light

PVC Shielded RS485 Control Cable


4 Core RS485 Control Cable


RS485 Shielded Cable Wire

Product Description

PVC Shielded RS485 Control Cable , 4 Core Shielded Cable Wire 0

                                                          PVC Shielded RS485 Control Cable , 4 Core Shielded Cable Wire 1

Rs485 Twisted RG59 RG6 Coaxial Cable 2 Core 3 Core 4 Cores 20AWG 22AWG 18AWG


 RVVP Communication Cable 2core 3core 4cores 20AWG 22AWG Twisted RS485 Shielded Cable

 RS-485 is an electrical-only standard. In contrast to complete interface standards, which

define the functional, mechanical, and electrical specifications, RS-485 only defines the

electrical characteristics of drivers and receivers that could be used to implement a balanced

multipoint transmission line. This standard, however, is intended to be referenced by higher

level standards, such as DL/T645, for example, which defines the communication protocol

for electronic energy-meters in China, specifying RS-485 as the physical layer standard.



  • Heat-resistant, flame retardant
  • excellent insulation performance, stable chemical performance
  • excellent transmission performance due to the use of high-quality polyethylene for
  • stranded wire shielding
  • effective resistance to electromagnetic interference due to the use of a new type of
  • aluminum foil, braided copper mesh double layer shielding.
Model NO


 Length(M)  Maximum conductor resistance at 20℃(Ω/KM)  Minimum conductor resistance at 70℃(Ω/KM)
 RS-485 2*0.5  5.5  100/200  39  0.012
 RS-485 2*0.75  6.0  100/200  26  0.010
 RS-485 2*1.0  6.6  100/200  19.5  0.010
 RS-485 2*1.5  7.5  100/200  13.3  0.009
 RS-485 2*2.5  8.7  100/200  7.98  0.008
 RS-485 3*0.5  5.8  100/200  39  0.012
 RS-485 3*0.75  6.3  100/200  26  0.010







Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
