Ground G652d Fiber Optic Cable 24 Core Single Mode Aerial Optical Opgw Fiber

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-OPGW-24
Minimum Order Quantity 10KM
Packaging Details 1000M/Wood Roll,Size of Wood Roll:103*103*66cm, Weight:240KG . We accept OEM length(2km-5KM all ok)
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 500KM/month
Product Details
Product Name OPGW Fiber Optic Cable Fiber Type G652D
Number Of Fiber 24core(Support 24/48//96core) Cable Diameter 17±0.5mm
Outer Jacket Materail Aluminum Clad Steel Package Special Wooden Drum
Application Aerial And Duct Transportation And Operation -40℃ ~ +80℃
High Light

G652d Fiber Optic Cable

,

G652D 24 Core Fiber Optic Cable

,

G652D Opgw Fiber Cable

Product Description

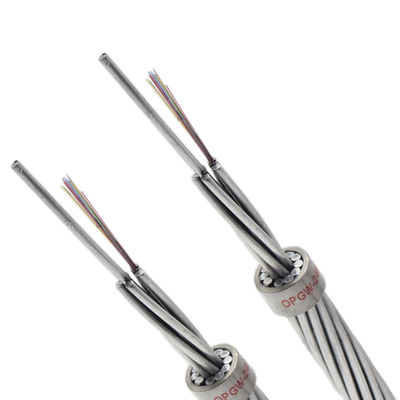

Ground G652d Fiber Optic Cable 24 Core Single Mode Aerial Optical Opgw Fiber



24 Core Single Mode Aerial Optical Opgw Fiber Ground G652d Fiber Optic Cabl



Optical Fiber Composite Overhead Ground Wire Double Layer Stranded OPGW



OPGW is a kind of overhead ground wire containing optical fiber, which has multiple functions such as overhead ground wire and optical communication. It is applicable to new aerial power route to satisfy the needs for big conductors and high voltage transmission, and is used to conduct large fault short circuit current to provide anti lightning protection.



Features and Benefits

• Large diameter, large fiber capacity

• The structure is stable and the reliability is high

• Excellent capability against side and outstanding short circuit current capacity

• The optimum stranding design can obtain the surplus length of secondary optical fiber

• The number of strands can be designed in two or three layers

• Match with common ground wires



Fiber Colour

First group

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Purple

Pink

Aqua

Second group

Blue

ring

Orange

ring

Green

ring

Brown

ring

Grey

ring

White

ring

Red

ring

natural

Yellow

ring

Purple

ring

Pink

ring

Aqua

ring

Structural performance parameters





















Technical Data

according to IEC, IEEE, DL/T 832, GB/T 7424.4 standards

Stranded:core and layer1 greased

stranding direction of outer layer is right hand(Z-stranding)

Cable Diameter 17.10 mm
Cable Weight 972 kg/km
Supporting Cross Section 164.0 mm2
Section of AS Wire 163.97 mm2
Section of AA Wire 0.00 mm2
Rate Tensile Strength (RTS) 163.1 kN
Modulus of Elasticity (E-Modulus) 138.1 kN/mm2
Thermal Elongation Coefficient 13.5 ×10-6/℃
Permissible Maximum Working Stress (40% RTS) 397.9 N/mm2
Everyday Stress(EDS) (18%~25% RTS) 179.1 ~248.7 N/mm2
Ultimate Exceptional Stress (70% RTS) 696.4 N/mm2
DC Resistance 0.385 Ω/km
Short Time Current (1s, 40℃~200℃) 12.7 kA
Short Time Current Capacity I2t 161.9 kA2S
Minimum Bending Radiu Installation: 342 mm
Oprating: 256 mm
Ratio between Pull and Weight 17.1 km

Temperature

Range:

Installation -10℃ ~ +50
Transportation and Operation -40℃ ~ +80



Optical characteristic parameter

Optical Fiber Type

G.652D

Attenuation Coefficient

@1310nm

≤0.36  dB/km

@1383nm

≤0.35  dB/km

@1550nm

≤0.22  dB/km

@1625nm

≤0.23  dB/km

Effective Group Refractive Index



@1310nm

1.467

@1550nm

1.467

Polarization Mode Dispersion

≤0.1  ps/√km

MFD 1310 nm

9.0±0.3  um

MFD 1550 nm

10.0±0.3  um

Cladding Diameter

125.0±1.0  um

Cladding Non-Circularity

≤1.0  %

Core/Cladding Concentricity Error

≤0.8  um

Coating Diameter

242±7  um

Core No-Circularity



≤6.0  %

Coating/Cladding Concentricity Error

≤12.0 um

Cable Cut-Off

≤1260  nm

Zero Dispersion Wave length

1312±10 nm

Dispersion Slope

0.092 ps/(nm2∙km)

PMD link design value

≤0.05ps/√km



Product standards : IEC-60794-3-10 ;ITU-T G.652
