Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-FTTH-1
Minimum Order Quantity 100KM
Packaging Details 1000M/Wood Roll,Size of Wood Roll:33*32*32cm, Weight:21KG
Delivery Time 10-15days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Outdoor FTTH Drop Cable Fiber Type Single-Mode G657A1/G652D
Number Of Fiber 1 Construction Self-supporting With FRP/Steel Messenger
Cable Diameter (2.0±0.2)X(5.0±0.2)mm Outer Jacket Materail LSZH/PVC
Samples Free Package Wooden Drum
High Light

G652D flat drop fiber cable

,

G657A Flat FTTH Drop Cable

,

G657A Steel FTTH Drop Cable

Product Description

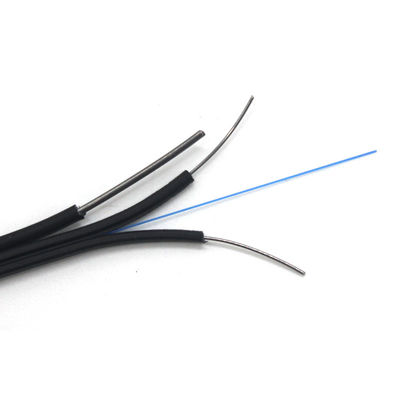

Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire 0

                                                             Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire 1

Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire

Outdoor 1 2 4 Cores Single Mode G652D G657A Steel Wire Fiber Optic Flat FTTH Drop Cable
The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.

Features
1. Suitable for indoor or duct application
2. Easy jacket removal without special tools
3. Self-support structure
4. Excellent crush and impact resistance
5. Flame Retardant LSZH jacket is applied
6. ITU-T G.657 fiber is available
7. Available from 1 to 8-fiber counts

Application
1. Access network, fiber to the home
2. Used end users directly cabing
3. Outdoor cabling and distribute


Structure

Structure

Unit

Parameter

Fiber count

Fibers

2

Diameter

mm

5.0*2.0

Weight

Kg/km

Approx.21

Sheath color



Black

Sheath material



LSZH

O.D of steel wire

mm

1.0±0.05mm

Strength member

mm

0.5mm FRP

Tensile strength

N

1500

Crush Resistance

N

2200

Bending Radius

Dynamic



30×Cable Diameter

Static



15×Cable Diameter

Operating Temperature

-40 --- +70















































Test Datasheet

Category

Description

Specifications

G.657A1

Optical Specifications

Attenuation

@1310-1625nm

≤0.36dB/km

@1383±3nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Attenuation discontinuity

≤0.05 dB

Attenuation vs. Wavelength

@1285~1330nm

≤0.05 dB/km

@1525~1575nm

≤0.05 dB/km

Zero Dispersion Wavelength

1300~1324nm

Zero Dispersion Slope

≤0.092ps/(nm2.km)

Dispersion

@1310nm

≤3.5 ps/nm.km

@1550nm

≤18 ps/nm.km

Polarization Mode Dispersion(PMD)

≤0.2ps/km1/2

Cable Cutoff Wavelength(λcc)

≤1260nm

Effective Group Index of Refraction

@1310nm

1.4675

@1550nm

1.4681

Macro bend loss  (30mm radius ,100turns) 1625nm

≤0.1 dB

Geometric

Specifications

Mode Field Diameter

@1310nm

9.2±0.6μm

@1550nm

10.4±0.8μm

Cladding Diameter

125±1μm

Cladding Non-Circularity

≤1.0%

Coating Diameter

245±7μm

Coating/Cladding  Concentricity Error

≤8μm

Core/Cladding  Concentricity Error

≤0.8μm

Mechanical

Specifications

Proof Test level

≥1.0%

Fiber Curl Radius

≥4.0m

Peak Coating Strip Force

1.3~8.9N
