Duplex patch cord LC SC GYFJH LSZH Jacket 7.0mm 2 Cores Branch Outdoor Optical Cable

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-LC/LC-SM-DX
Minimum Order Quantity 50pcs
Packaging Details poly bag or OEM package
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs every month
Product Details
Item Name Branch Outdoor Optical Cable Fiber Count 2core
Cable Jacket Diameter 7.0 Mm Cable Jacket Material LSZH
Wavelength 1310/1550nm Cable Color Black
Sample Status In Stock Length 7M
Product Description

Duplex Patch Cord LC SC GYFJH LSZH Jacket 7.0mm 2 Cores Branch Outdoor Optical Cable



CPRI fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet theFTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.



Features

  • Good mechanical and environmental characteristics;
  • Flame retardant characteristics meet the requirements of relevant standards;
  • The mechanical characteristics of jacket meet the requirements of relevant standards;
  • Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission; 5, Meet various requirements of market and clients
  • Cable Parameters





Fiber Count



Cable Dimension

mm



Cable Weight

kg/km

Tensile



N

Crush



N/100mm

Min. Bend Radius



mm



Range of Temperature

Long

Term

Short

Term

Long

Term

Short

Term

Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
4 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
8 7.0 42.3 200 400 1100 2200 20D 10D -30-+70

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;



  1. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter or 0.9mm tight buffer.



  1. D is outer diameter of the round cable;





  1. one single mode fiber

Core Cladding Coating Buffer



Item Unit Specification
Attenuation dB/km

1310nm≤0.4

1550nm≤0.3



Dispersion Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wavelength Nm 1300~1324
Zero dispersion slope Ps/nm.km ≤0.095
Fiber cutoff wavelength Nm ≤1260
Mode field diameter Um 9.2±0.5
Mode field concentricity Um <=0.8
Cladding diameter um 125±1.0
Cladding non-circularity % ≤1.0
Coating/cladding concentricity error Um ≤12.5
Coating diameter um 245±10

bending, dependence induced

attenuation

1550nm, 1turns,32mm diameter

100rums,60mm diameter

≤0.5 db
Proof test kpsi ≥100





  1. Connector Specification



ITEM PARAMETER
Connector type LC/UPC . LC/UPC
Insertion Loss <=0.3db
Return Loss >=50db
Fiber mode Single mode 9/125
Operating wavelength 1310nm, 1550nm
Test wavelength 1310nm, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

Product Details

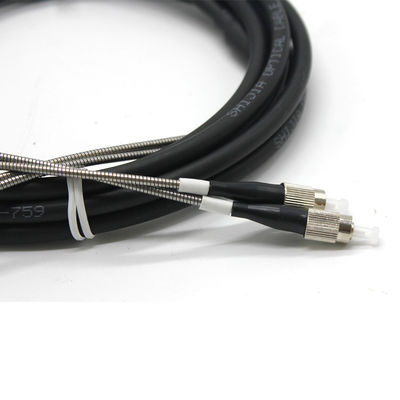

Duplex patch cord LC SC GYFJH LSZH Jacket 7.0mm 2 Cores Branch Outdoor Optical Cable 0

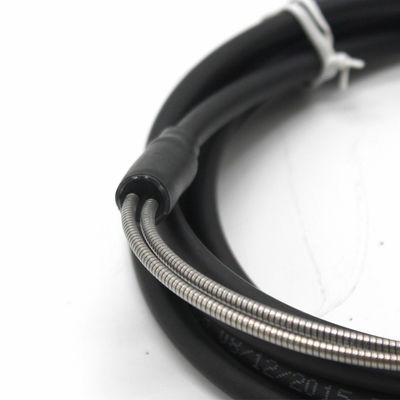

Duplex patch cord LC SC GYFJH LSZH Jacket 7.0mm 2 Cores Branch Outdoor Optical Cable 1

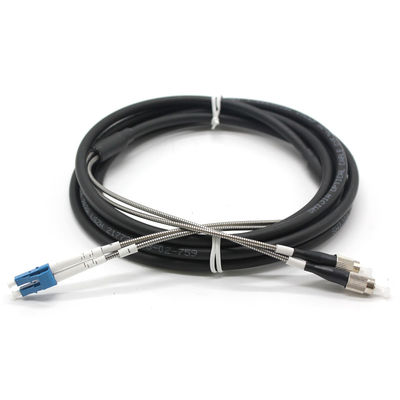

Duplex patch cord LC SC GYFJH LSZH Jacket 7.0mm 2 Cores Branch Outdoor Optical Cable 2

FAQ




Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
