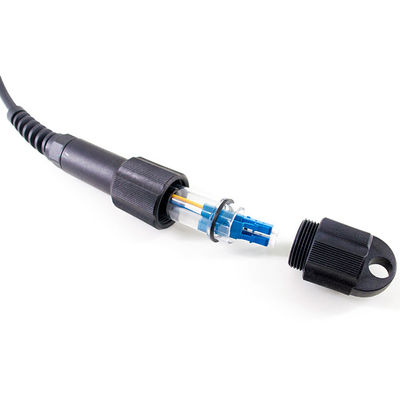

BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GJFJV-Out
Minimum Order Quantity 1000pcs
Packaging Details Poly bag or OEM package
Delivery Time 20days
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs every month
Product Details
Item Name Watreproof Patch Cord Connector Type DLC
Fiber Count 2 Cable Jacket Diameter 7.0 Mm
Cable Jacket Material Low Smoke Zero Halogen Wavelength 1310/1550nm
Storage Temperature -40~80°C Length 10M
High Light

RRU Waterproof Patch Cord

,

BBU Waterproof Patch Cord

,

GYFJH Protected Branch Cable

Product Description

BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable



BBU/RRU Watreproof Patch Cord 2 Core Single Mode GYFJH Outdoor Protected Branch Cable PDLC/DLC



The ODC Connector together with the far transmission cable, are becoming the standard interface specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.
The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense applications.





Features

  1. Standard DLC connector, well connected with standard LC adaptor
  2. Available Single mode and Multimode
  3. IP67 water and dust protection
  4. Compact design
  5. Broad temperature range and wide range of indoor and outdoor cables
  6. Easy Operation, reliable and cost-effective installation

Application:

  1. Multi-purpose Outdoor
  2. For connection between distribution box and RRH
  3. Deployment in Remote Radio Head cell tower applications
  4. FEATURES
  5. Standard DLC connector, well connected with standard LC adaptor
  6. Available Single mode and Multimode
  7. IP67 water and dust protection
  8. Compact design
  9. Broad temperature range and wide range of indoor and outdoor cables
  10. Easy Operation, reliable and cost-effective installation



Cable Parameters





Fiber Count



Cable Dimension

mm



Cable Weight

kg/km

Tensile



N

Crush



N/100mm

Min. Bend Radius



mm



Range of Temperature

Long

Term

Short

Term

Long

Term

Short

Term

Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
4 7.0 42.3 200 400 1100 2200 20D 10D -30-+70
8 7.0 42.3 200 400 1100 2200 20D 10D -30-+70

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;



  1. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter or 0.9mm tight buffer.



  1. D is outer diameter of the round cable;





  1. one single mode fiber

Core Cladding Coating Buffer



Item Unit Specification
Attenuation dB/km

1310nm≤0.4

1550nm≤0.3



Dispersion Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wavelength Nm 1300~1324
Zero dispersion slope Ps/nm.km ≤0.095
Fiber cutoff wavelength Nm ≤1260
Mode field diameter Um 9.2±0.5
Mode field concentricity Um <=0.8
Cladding diameter um 125±1.0
Cladding non-circularity % ≤1.0
Coating/cladding concentricity error Um ≤12.5
Coating diameter um 245±10

bending, dependence induced

attenuation

1550nm, 1turns,32mm diameter

100rums,60mm diameter

≤0.5 db
Proof test kpsi ≥100





  1. Connector Specification



ITEM PARAMETER
Connector type LC/UPC . LC/UPC
Insertion Loss <=0.3db
Return Loss >=50db
Fiber mode Single mode 9/125
Operating wavelength 1310nm, 1550nm
Test wavelength 1310nm, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

Product Details

BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable 0

BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable 1BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable 2

BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable 3

BBU RRU Waterproof Patch Cord 2 Core GYFJH Outdoor Protected Branch Cable 4
