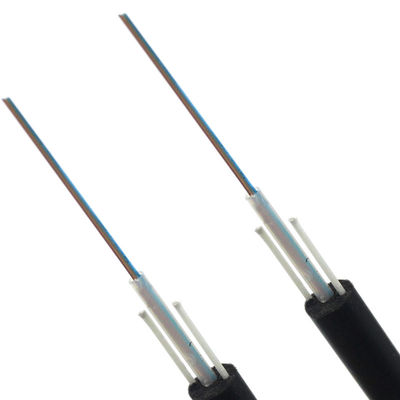

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GYFXTY-12
Minimum Order Quantity 10KM
Packaging Details 3000M/Wood Roll,Size of Wood Roll:103*103*66cm, Weight:240KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000KM/month
Product Details
Product Name GYFXTY Fiber Optic Cable Fiber Type G652D
Number Of Fiber 12 Cable Diameter 7.0±0.5mm
Outer Jacket Materail PE Package 3000M/Wood Roll
Application Overhead Sample Status In Stock
High Light

G652D Fiber Optical Cable

,

250μm Fiber Optical Cable

,

G652D Outdoor aerial optical cable

Product Description

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable





The fibers,  250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound. Two Fiber Reinforced Plastic (FRP)

locates in the side of core as a non-metallic strength member. The tubes (and fillers) are

stranded around the strength member into a compact and circular core. After the cable core

is filled with the filling compound to protect it from water ingress, the cable is completed

with a PE sheath.



Good mechanical and temperature performance

 1. High strength looes tube that is hydrolysis resistant

 2. Special tube filling compound ensure a critical protection of fiber

 3. Crush resistance and flexibility

 4. The following measures are taken to ensure the cable watertight:

 5. Single Fiber Reinforced Plastic as the strength member

 6.  Loose tube filling compound

 7. 100% cable core filling



Optical Characteristics

Technical parameters:
cable count out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum allowable Crush load(N/100mm) Min bending radius(MM) Suitable temperature
  (MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45.00 1200 500 1000 300 20D 10D -40+60
4 7.2 45.00 1200 500 1000 300 20D 10D -40+60
6 7.2 45.00 1200 500 1000 300 20D 10D -40+60
8 7.2 45.00 1200 500 1000 300 20D 10D -40+60
12 7.2 45.00 1200 500 1000 300 20D 10D -40+60
24 7.2 45.00 1200 500 1000 300 20D 10D -40+60



Fiber standard control

Fiber Type
Multi-mode G.651 A1a:50/125 Gradient-type refractive index
A1b:62.5/125
Single-mode G.652(A,B,C,D) B1.1routines
G.653 B2 Zero dispersion-shifted
G.654 B1.2 Cutoff wavelength shift
G.655 B4 Non-zero dispersion-shifted



2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable 0

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable 1

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable 2

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable 3

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable 4





FAQ

2 4 6 8 12 core GYFXTY FRP Strength Member Outdoor Aerial Duct Fiber Optical Cable 5

Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
