2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables

  • 2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables
  • 2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables
  • 2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables
Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GYFXTY-6
Minimum Order Quantity 10KM
Packaging Details 3000M/Wood Roll，Size of Wood Roll：103*103*66cm, Weight:240KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GYFXTY Fiber Opticl Cable Fiber Type Single Mode
Cable Structure Uni-Loose Tube Non Metallic Number Of Fiber 6
Cable Diameter 7.0±0.5mm Outer Jacket Materail PE
Package 3000M/Wood Roll Application Overhead
High Light

GYFXTY Optical Fiber Cable

,

GYFXTY Outdoor Optical Cable

,

GYFXTY telecommunication cable
Product Description

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 0

                                                             2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 1

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables

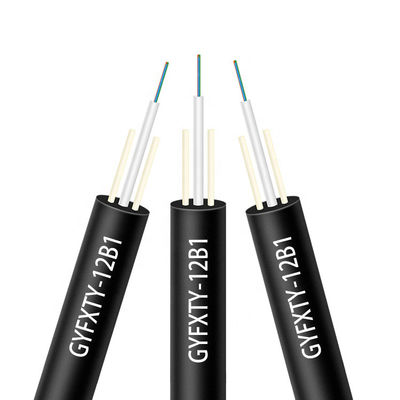

The fibers,  250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound. Two Fiber Reinforced Plastic (FRP)

locates in the side of core as a non-metallic strength member. The tubes (and fillers) are

stranded around the strength member into a compact and circular core. After the cable core

is filled with the filling compound to protect it from water ingress, the cable is completed

with a PE sheath.



Features

  • Full cross-section water-blocking structure with vertical cover ensure good water blocking and moisture resistance
  • Loose tube is filled with special ointment for a key fiber protection
  • The material of strengt member is copper wire.
  • Product life of 30 years

Applications

  • Applications: Suitable for long-distance communication and indoor communication
  • Way of laying: overhead, pipeline
  • Operating temperature: -40 ~ + 70 °C
  • Bend radius: static 10x cable diameter; Dynamic 20x cable diameter



Optical Characteristics

Technical parameters:
cable count out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum allowable Crush load(N/100mm) Min bending radius(MM) Suitable temperature
  (MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45.00 1200 500 1000 300 20D 10D -40+60
4 7.2 45.00 1200 500 1000 300 20D 10D -40+60
6 7.2 45.00 1200 500 1000 300 20D 10D -40+60
8 7.2 45.00 1200 500 1000 300 20D 10D -40+60
12 7.2 45.00 1200 500 1000 300 20D 10D -40+60
24 7.2 45.00 1200 500 1000 300 20D 10D -40+60



Fiber standard control

Fiber Type		 Multi-mode G.651 A1a:50/125 Gradient-type refractive index
A1b:62.5/125
Single-mode G.652(A,B,C,D) B1.1routines
G.653 B2 Zero dispersion-shifted
G.654 B1.2 Cutoff wavelength shift
G.655 B4 Non-zero dispersion-shifted



2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 2

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 3

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 4

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 5

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 6





FAQ

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 7

Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
