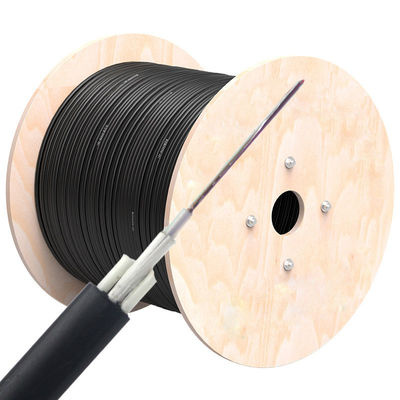

Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable

  • Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable
  • Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable
  • Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable
Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GYFXY-12
Minimum Order Quantity 10KM
Packaging Details 3000M/Wood Roll，Size of Wood Roll：75*75*66cm, Weight:150KG
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GYFXY Fiber Optic Cable Fiber Type G652d
Construction Flat Central Loose Tube Number Of Fiber 12
Cable Diameter 9.5x4.6mm Outer Jacket Materail PE
Package 3000M/Wood Roll Application Overhead
High Light

GYFXTY FL Flat Drop Fiber Cable

,

Gyfxy Flat Drop Fiber Cable

,

Gyfxy Ftth Drop Cable
Product Description
Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 0
                                                             Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 1

Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable



GYFXTY-FL Flat Structure Dielectric FRP Strength Member 2-24 Core Fiber Optic Cable Gyfxy



This kind of dielectric cables offer the ease of installation of standard flat cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables can offer exceptional crush resistance. Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.



Features

  • Low dispersion and attenuation
  • PE sheath protects cable from ultraviolet radiation
  • Small diameter, light weight, and friendly installation
  • Excellent mechanical and temperature resistant performance
  • Special tube filling compound ensures a critical protection for fiber
  • High strength loose tube itself has good hydrolysis resistant performance
  • Two parallel non-metal strength has an excellent anti-electromagnet ability
  • Aerial application
  • Trunk power transmission system
  • Access network and local network
  • Electromagnetic interfering places
  • Adopted to outdoor distribution, lightning protection
  • Long-distance comunication and bureau communication



Optical Characteristics

Technical parameters:
cable count out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum allowable Crush load(N/100mm) Min bending radius(MM) Suitable temperature
  (MM) (KG) short term long term short term long term short term long term (℃)
2 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
4 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
6 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
8 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
12 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
24 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60



Fiber standard control

Fiber Type		 Multi-mode G.651 A1a:50/125 Gradient-type refractive index
A1b:62.5/125
Single-mode G.652(A,B,C,D) B1.1routines
G.653 B2 Zero dispersion-shifted
G.654 B1.2 Cutoff wavelength shift
G.655 B4 Non-zero dispersion-shifted





Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 2

Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 3



Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 4

Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 5





FAQ

Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable 6

Q1: What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
