GYXTC8Y Mini Self Supporting Fiber Optic Cable Unarmoured Overhead 4 6 8 12 Core
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | GYXTC8Y Fiber Optic Cable | Fiber Count | 12 Cores |
|---|---|---|---|
| Fiber Type | G652D | Overall Diameter | 7.8x4mm |
| Outer Jacket | HDPE | Steel Wire Strand Wire | 7x0.8mm |
| Length | 1-5km Per Wooden Drum | Weight/kg | 51KG |
| Highlight | 4mm Fiber Optic Cable,Unarmoured Self Supporting Fiber Optic Cable,GYXTC8Y Outdoor Fiber Optic Cable |
||
Product Description
GYXTC8Y mini figure 8 unarmored Overhead Self Supporting 4 6 8 12 Core

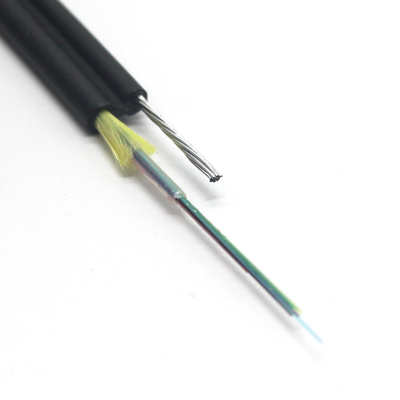

GYXTC8Y Self-supported mini figure 8 optical cable with fibers placed in jelly filled loose buffer tube, the loose tube covering the aramid yarn. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.
Specification:
Item Name:Fiber optical cable GYXTC8Y.
Optical Mode:Single mode/Multimode.
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.
Total Fiber Count:2-24cores.
Bend Radius (Static/Dynamic):10D/20D.
Working Life:More than 25 years.
Application:Aerial self-supporting, Local network, Long distance network communication.
Construction
1. Colored fiber
Coated outside diameter:125.0±0.1um
Optical fiber diameter:242±7um
UV color fiber:standard chromatogram
Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua
2.Tube filling compound (Gel)
3.PBT loose tube
4.Aramid yarn
5.Black PE out jacket outside diameter:7.8x4 mm
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE .ROHS ISO9001
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
| Fiber count | 12 core |
| Fiber Type: | G652D/G657A1/G657A2 |
| Crush Resistance Long term: | 300 (N/100MM) |
| Crush Resistance Short term: | 1000(N/100MM) |
| Overall Diameter | 7.8x4mm |
| Sheath | PE |
| Strand Steel wire | 7*0.8mm |
|
Sample Status |
In stock |
