LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-LC/LC-MM-DX
Minimum Order Quantity 100pcs
Packaging Details poly bag or OEM package
Delivery Time 15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000pcs every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi Mode Patch Cord Fiber Grade OM3 50/125μm(Support OM1 OM2 OM4)
Connector Type LC To LC Wavelength 850/1300nm
Fiber Count Duplex Cable Jacket Diameter 3.0mm
Min. Bend Radius (Fiber Core) 7.5mm Attenuation At 850nm 3.0 DB/km
High Light

LC UPC Multimode Patch Cord

,

3mm Multimode Patch Cord

,

LSZH FTTH Fiber Optic Patch Cord

Product Description

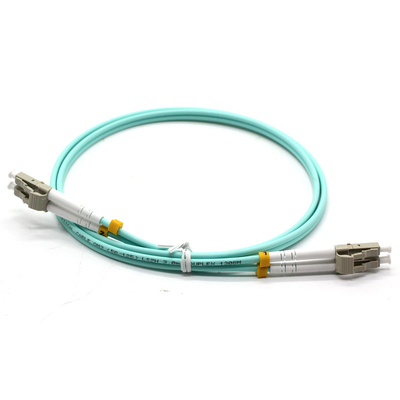

LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 0

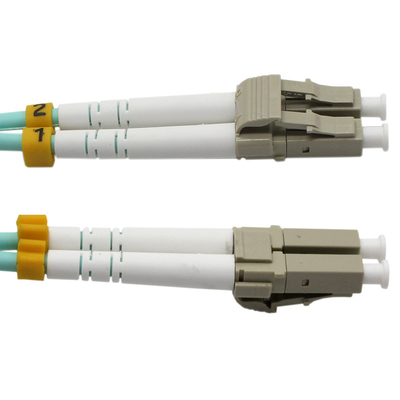

                                                             LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 1

FTTH outdoor lc/upc-LC/UPC duplex 1m Om3 3mm Fiber optic patch cord LSZH



Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.



Item Spotlights
  • Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss
  • Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use
  • 10N Tensile Strength of Boot & 180° Rotation of Connector
  • Designed for 100/1000BASE-SX Networks Applications
  • Compliant to IEC-61754 and TIA-604 (FOCIS)






SC/FC fiber patch cord more detailes as below:

Product Name
LC Fiber Optic Patch Cord
Connector Type
LC
Polish Type
UPC to UPC
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
1G Ethernet Distance
550m at 850nm
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Fiber Grade
Bend Insensitive
Minimum Bend Radius
7.5mm
Cable Jacket
LSZH
Cable Diameter
3.0mm
Operating Temperature
-20~70°C





Product Details

LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 2

LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 3

LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 4

LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 5

The following is the armored Patch Cord structure

LC / UPC Duplex 1m Om3 3mm Multimode Patch Cord LSZH FTTH Outdoor 6
