12 24 36 Core Gytc8s Outdoor 48 Strands Fiber Optic Cable Figure 8

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GYTC8S-48
Minimum Order Quantity 10KM
Packaging Details 2KM per wooden drums, Weight:130KG, Drum Size:75*75*60CM
Delivery Time 15days
Payment Terms L/C, T/T, Western Union
Supply Ability 2000km every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GYTC8S Fiber Optic Cable Fiber Count 24cores
Fiber Type Singlemode Overall Diameter 9.5x18.3mm
Outer Jacket HDPE Steel Wire Strand Wire 7x0.8mm
Length 1-5km Per Wooden Drum Cable Color Black
High Light

Gytc8s Outdoor Fiber Optic Cable

,

36 Core Exterior Fiber Optic Cable

,

ISO9001 Exterior Fiber Optic Cable

Product Description

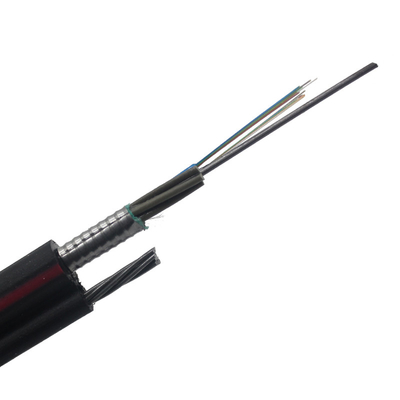

12 24 36 Core Gytc8s Outdoor 48 Strands Fiber Optic Cable Figure 8 0

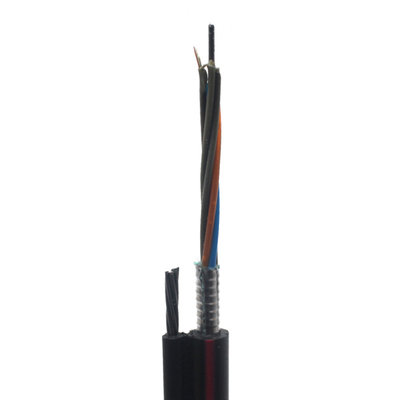

                                                             12 24 36 Core Gytc8s Outdoor 48 Strands Fiber Optic Cable Figure 8 1

12 24 36 Core Gytc8s Outdoor Fibre 48 Hilos Cabo De Fibra Optica Cable Figure 8



GYTC8S cable, singlemode/multimode fibers are positioned in the loose tubes, while

the loose tubestrand together around metallic central strength member into a compact

 and circular cable core,and the water blocking materials are distributed into interstices

of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a

figure-8 structure.



Specification:

Item Name:Fiber optical cable GYTC8S.

Optical Mode:Singlemode/Multimode.

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.

Total Fiber Count:2-144.

Bend Radius(Static/Dynamic):10D/20D.

Working Life:More than 25 years.

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.



Construction

  1. Colored fiber

Coated outside diameter:125.0±0.1um

Optical diber diameter:242±7um

UV color fiber:standard chromatogram

Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua

  1. Tube filling compound(Gel)
  2. PBT loose tube
  3. Steel wire strengthen core
  4. Core filler
  5. Steel wire strand wire
  6. Steel tape
  7. Black PE out jacket outside diameter:9.5*18.3mm



Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001



Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility



Fiber count 24 core
Fiber Type: G652D/G657A1/G657A2
Crush Resistance Long term: 300 (N/100MM)
Crush Resistance Short term: 1000(N/100MM)
Overall Diameter 9.5*18.3mm
Sheath PE
Strand Steel wire 7*0.8mm

Sample Status

In stock
