OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard

Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-Pigtail
Minimum Order Quantity 50pcs
Packaging Details poly bag or OEM package
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Optic Pigtail Fiber Grade OM1/OM2/OM3
Connector Type SC Or LC Wavelength 850/1300 Nm
Fiber Count Simplex Cable Jacket Diameter 3.0mm Or 2.0mm
Cable Jacket Material LSZH Or PVC Ferrule UPC Or APC
High Light

OM3 Multimode Fiber Optical Pigtail

,

0.9mm Fiber Optical Pigtail

,

LC Connector Fiber Optical Pigtail

Product Description

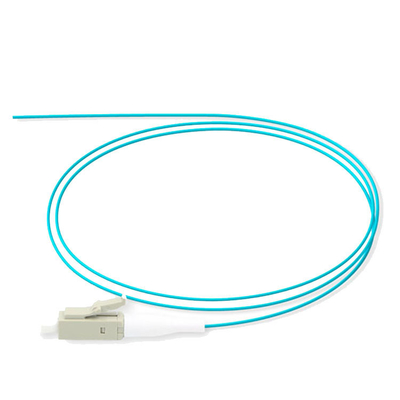

OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard 0

                                                             OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard 1

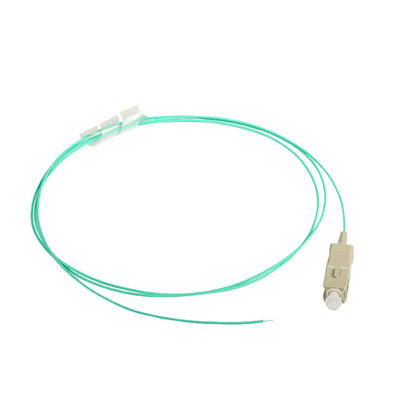

Simplex 0.9mm Fiber Optic Patch Cord SC APC Optical Fiber Pigtail



Patch Panel SC SM Pigtail 9/125 SC APC Optical Fiber Pigtail OD 0.9mm

Superior Simplex Multimode Fiber Optic Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.



Feature

-- Low insertion loss & High return loss

-- Good exchangeability

-- Good Durability

-- High temperature stability

-- Superior PC/UPC/APC Polishing

-- Standard: IEC Grade B



Applications:

-- Fiber Optic communications system

-- Fiber Optic access networks

-- CATV/CCTV --Fiber Optic data communication

-- Fiber Optic Test Equipment



Product Name
SC/LC Fiber Optic Pigtails
Fiber Grade
OM3
Connector Type
SC/LC
Wavelength
850/1300nm
Fiber Count
Simplex
Cable Jacket Diameter
0.9mm
Cable Jacket Material
LSZH
Ferrule
UPC
Cable Length
0.6 M or customized
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Minimum Bend Radius
10mm
Operation temperature
-40℃~ 85℃





Product Details

OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard 2

OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard 3

OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard 4

OM3 Multimode 0.9mm LC Connector Fiber Optical Pigtail IEC Grade B Standard 5
