Single Mode Optical Power Ground Wire Overhead Line OPGW Cable Supplier

Place of Origin CHINA
Brand Name AIXTON
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-OPGW-48
Minimum Order Quantity 10KM
Packaging Details 1000M/Wood Roll,Size of Wood Roll:103*103*66cm, Weight:240KG . We accept OEM length(2km-5KM all ok)
Delivery Time 15-20days
Payment Terms T/T, L/C, Western Union
Supply Ability 500KM/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OPGW Fiber Optic Cable Fiber Type G652D
Number Of Fiber 48(Support 24/48//96core) Cable Diameter 14±0.5mm
Outer Jacket Materail Aluminum Clad Steel Package Special Wooden Drum
Application Aerial And Duct Sample Status In Stock
Highlight

Single Mode Optical Power Ground Wire

,

G652D OPGW Cable

,

Overhead Line OPGW Cable

Product Description

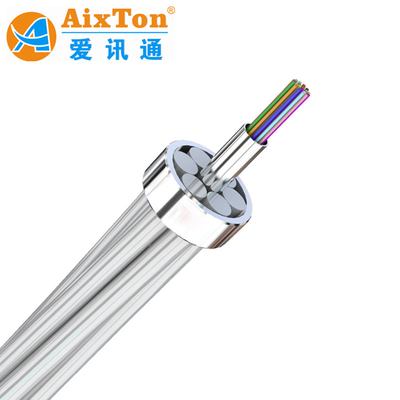

Single Mode Optical Power Ground Wire Overhead Line OPGW Cable Supplier 0

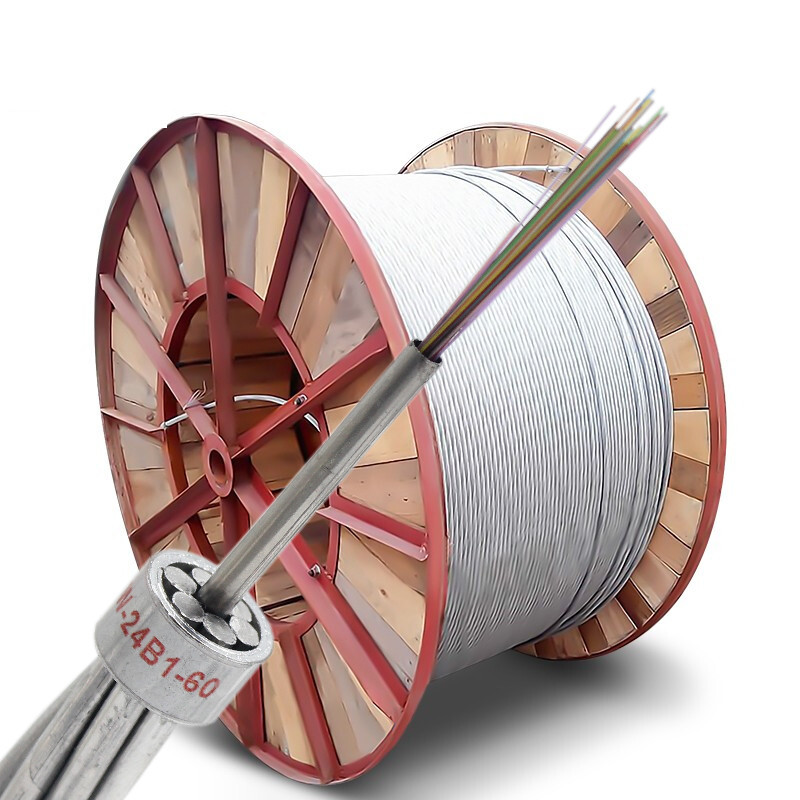

                                                             Single Mode Optical Power Ground Wire Overhead Line OPGW Cable Supplier 1

Single Mode G652D OPGW Outdoor Fiber Optic Cable 12 24 36 48 Fibers



Fiber Optic Cable OPGW Central Stainless Steel Tube Aluminum Single Mode 24core



The OPGW cable is wrapped by metal wire, which makes the cable more reliable, stable

and firm.It adopts aluminum clad steel wire, which is equivalent to a good conductor overhead

ground wire.

 It can receive various benefits such as reducing potential power supply flow of transmission

line, reducing power frequency overvoltage and improving power line's interference and

dangerous influence on communication line.Because optical fiber has the characteristics of

anti-electromagnetic interference and light weight, it can be installed on the top of transmission

line tower without considering the problems such as the optimal mounting position and

electromagnetic corrosion.Therefore, OPGW has higher reliability, superior mechanical

properties.



Features
1. The use of advanced stainless steel tube production technology, the tube is filled with water blocking compounds, which can effectively protect the optical fiber
2. Good structure compactness, high tensile strength
3. The short circuit current has little mutual interference between the power grid and the communication network
4. The excess length of the optical fiber and the twisting pitch of the cable core ensure that the OPGW optical cable is not stressed during the running tension
5. It is similar to the commonly used ground wire specifications, it is very convenient to set up and can directly replace the original ground wire



Application performance
1: for a variety of new power lines and renovation of power lines have been built
2: Good structure compactness
3: High tensile strength
4: The short circuit current has little mutual interference between the power grid and the communication network
5: Transmit various control signals for multi-channel broadband communication
6: Adopting advanced stainless steel tube production technology, the tube is filled with water blocking compounds, which can effectively protect the optical fiber
7: The excess length of the optical fiber and the twisting pitch of the cable core ensure that the OPGW optical cable is not stressed at the maximum operating tension
8: Similar to commonly used ground wire specifications, it is very convenient to set up and can directly replace the original ground wire



Fiber Colour

First group

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Purple

Pink

Aqua

Second group

Blue

ring

Orange

ring

Green

ring

Brown

ring

Grey

ring

White

ring

Red

ring

natural

Yellow

ring

Purple

ring

Pink

ring

Aqua

ring

Structural performance parameters

Project Parameter Unit
Cable model

OPGW-1C 48B1(12/90-100)




Optical fiber number 48 B1
Cable Diameter 14.3 mm
Cable Weight 600±5 Kg/km
Central structural element 1×Φ7.6/Aluminum tube mm
Outer structural element 10×Φ3.4/30AS mm
Computed sectional area 100 mm2
Rated breaking force 78 KN
Dc resistance 0.4 Ω/km
Short circuit current capacity 100 KA2S
Modulus of elasticity 132 G Pa
Coefficient of linear expansion 13.8 ×10-8/℃
Ratio of tension to weight 14.4 km
Outermost hinge direction Right
Static Bending Radius 20D mm
Dynamic Bending Radius 25D mm
Storage Temperature -60~85
Installation Temperature -40~70
Operating Temperature -60~70

Optical characteristic parameter



Optical Fiber Type

G.652D

Attenuation Coefficient

@1310nm

≤0.36  dB/km

@1383nm

≤0.35  dB/km

@1550nm

≤0.22  dB/km

@1625nm

≤0.23  dB/km

Effective Group Refractive Index



@1310nm

1.467

@1550nm

1.467

Polarization Mode Dispersion

≤0.1  ps/√km

MFD 1310 nm

9.0±0.3  um

MFD 1550 nm

10.0±0.3  um

Cladding Diameter

125.0±1.0  um

Cladding Non-Circularity

≤1.0  %

Core/Cladding Concentricity Error

≤0.8  um

Coating Diameter

242±7  um

Core No-Circularity



≤6.0  %

Coating/Cladding Concentricity Error

≤12.0 um

Cable Cut-Off

≤1260  nm

Zero Dispersion Wave length

1312±10 nm

Dispersion Slope

0.092 ps/(nm2∙km)

PMD link design value

≤0.05ps/√km



Product standards : IEC-60794-3-10 ;ITU-T G.652
