12 24 48 96 144 Core Underground Double Armoured Fiber Optic Cable GYTA53 GYFTA53

  • 12 24 48 96 144 Core Underground Double Armoured Fiber Optic Cable GYTA53 GYFTA53
  • 12 24 48 96 144 Core Underground Double Armoured Fiber Optic Cable GYTA53 GYFTA53
Place of Origin CHINA
Brand Name Aixton
Certification ISO9001,CE,FCC,ROHS
Model Number AXT-GYTA53-24
Minimum Order Quantity 10KM
Packaging Details 1KM-5KM/Wooden Drum, Weight: 120KG/KM, Drum Size: 78*78*68cm
Delivery Time 15-20days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000KM every month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name GYTA53 Fiber Cable Fibers 48core
Fiber Type G652D Samples Free
Armour Steel Tape+Al Tape Jacket Double PE Jacket
Cable Color Black Warranty 3 Year
High Light

Double Armoured Fiber Optic Cable

,

Underground Armoured Fiber Optic Cable
Product Description

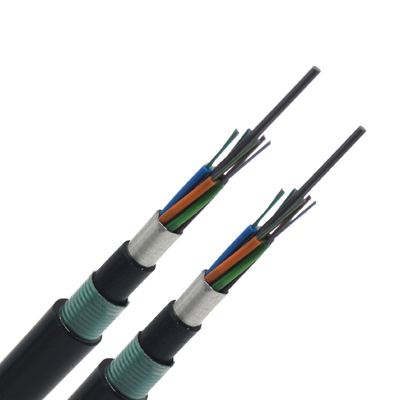

12 24 48 96 144 Core Underground Double Armoured Fiber Optic Cable GYTA53 GYFTA53 0

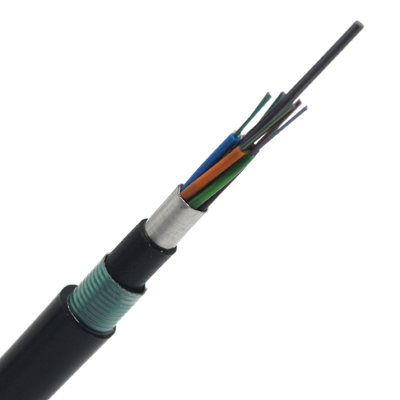

                                                             12 24 48 96 144 Core Underground Double Armoured Fiber Optic Cable GYTA53 GYFTA53 1

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket



Outdoor Underground Direct Buried Duct GYTA53 GYTY53 Singlemode Fiber Optic Cable 24 48 96core

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.


Features
1. Loose tube gel-filled construction for superiorfiber protection.
2. Double jacket single armored(GYTY53) and Double jacket double armored
3. (GYTA53) for rodent pr.otection and direct burial.
4. UV and moisture-resistant design
5. Waterproof
6. Rat bite

Applications
Direct buried, Duct, Underground conduits.
Backbone.

No.

Items

Unit

Specification

G.652D

1

Cladding Diameter

μm

125±0.7

2

Core-cladding concentricity

μm

≤0.5

3

Cladding non-circularity

%

≤0.7

4

Coating Diameter

μm

245±5

5

Cladding -coating concentricity

μm

<12.0

6

Mode field Diameter

1310nm

μm

9.2±0.4

1550nm

μm

10.4±0.5

7

Fiber Cutoff Wavelength

nm

λcc≤1260

8

Attenuation (max.)

1310nm

dB/km

≤0.4

1550nm

≤0.3

Product Details


FAQ

12 24 48 96 144 Core Underground Double Armoured Fiber Optic Cable GYTA53 GYFTA53 6

Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
